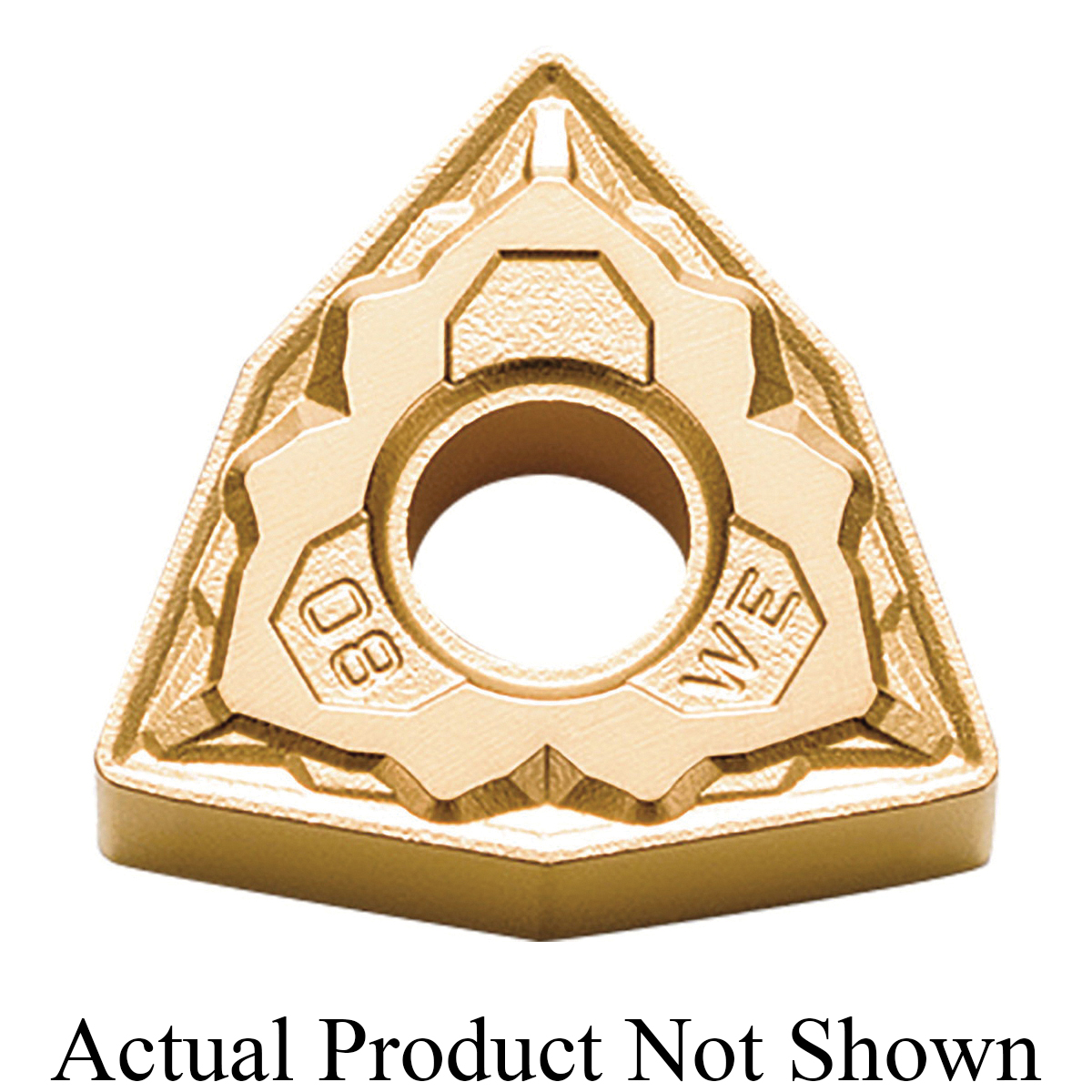

WNMG433WECA510 TURNING INSERT
WNMG433WECA510 TURNING INSERT
KYOCTAA09112
TAA09112
9.31
/ EA
http://schema.org/OutOfStock
/Product/KYOCTAA09112
- Applicable Materials: Carbon/Alloy Steel
- Chipbreaker: WE
- Corner Radius: 3/64in
- Hand Direction: Neutral
- Hole Diameter: 0.2031in
- Included Angle: 80°
- Inscribed Circle: 1/2in
- Insert Size: #433
- Insert Style: WNMG
- ISO Code: WNMG080412WE
- Material: Carbide
- Material Grade: P
- Rake: Negative
- Relief Angle: 0°
- Seat Size: 8
- Shape: Trigon
- Surface Treatment: VDC-TiCN/Al2O3/TiN Coated
- Thickness: 3/16in
- Type: 6-Cutting Edge
- Manufacturer Grade: CA510
- ANSI Code: WNMG433WECA510
- Country of Origin: US|JP|CN|KR
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Name: KYOCERA Precision Tools
- Series: CA5
- Application
- Item Features
- Standards
External Turning, Facing, Boring and Internal Facing Applications
- Wiper edge with 6 cutting edges
- Special substrate with thermal deformation resistance along with a thick and tough film coating for wear resistance
- High speed and high efficiency steel machining
ECCN: EAR99
