TPG 431 TN610 TURNING INSERT
TPG 431 TN610 TURNING INSERT
KYOC8864092
8864092
12.27
/ EA
http://schema.org/OutOfStock
/Product/KYOC8864092

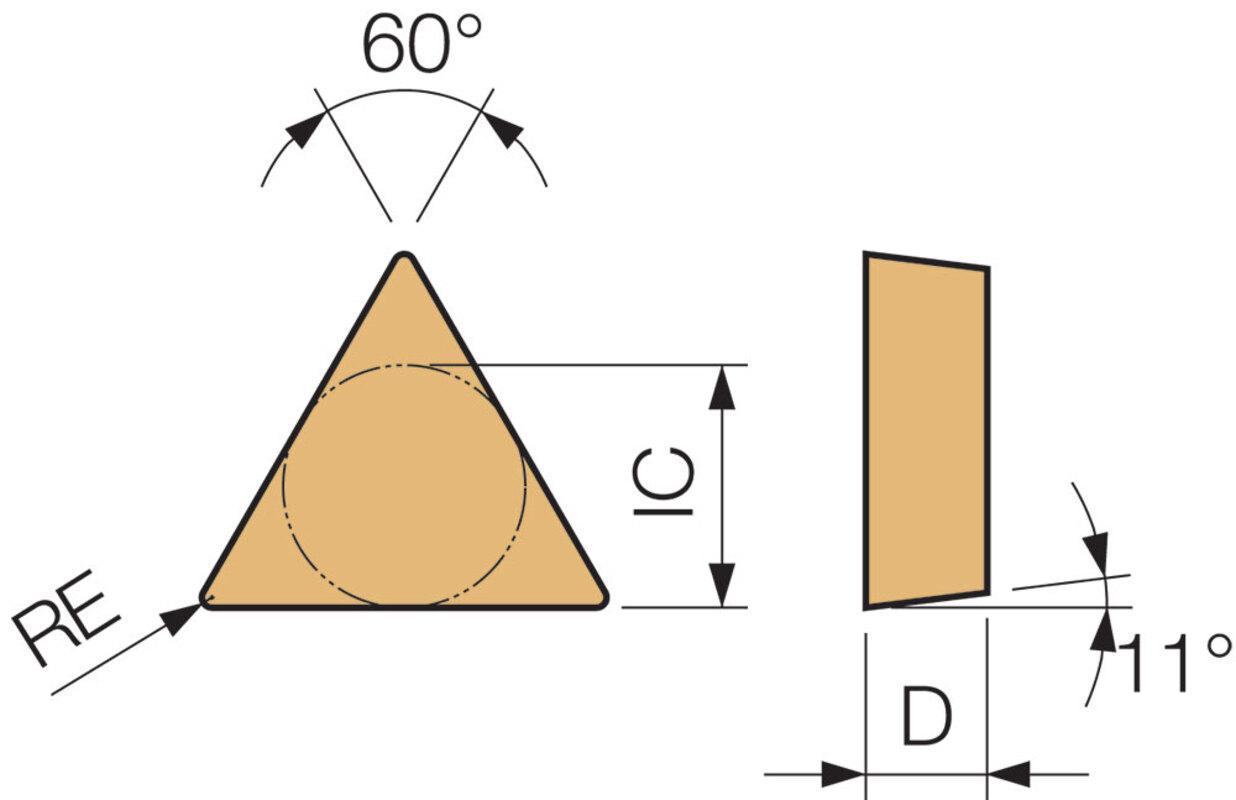

- Applicable Materials: Carbon/Alloy Steel
- Corner Radius: 1/64 in
- Hand Direction: Neutral
- Included Angle: 60 deg
- Inscribed Circle: 1/2 in
- Insert Size: #431
- Insert Style: TPG
- ISO Code: TPG431
- Material: Cermet
- Material Grade: P
- Rake: Positive
- Relief Angle: 11 deg
- Seat Size: 43
- Shape: Triangle
- Surface Treatment: Uncoated/TiCN Coated
- Thickness: 3/16 in
- Type: 3-Cutting Edge
- ANSI Code: TPG431TN610
- Country of Origin: US|JP|CN|KR
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Grade: TN610
- Manufacturer Name: KYOCERA Precision Tools
- Application
- Item Features
- Standards
External Turning, Facing, Chamfering and Boring Applications
- Three hybrid technology attributes maintain superior surface finish and machining stability
- Without hole
- Stable machining of steel
ECCN: EAR99
