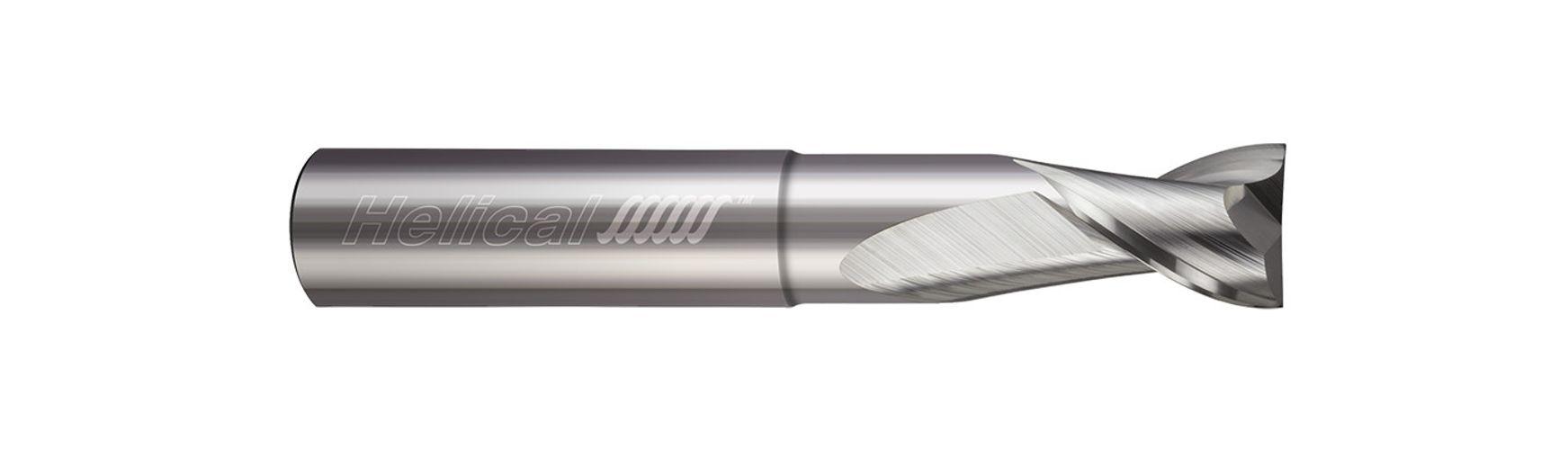

3/4 2FL 3/4SHK 1INLOC END MILL
3/4 2FL 3/4SHK 1INLOC END MILL
HESL60010
60010
290.20
/ EA
http://schema.org/OutOfStock
/Product/HESL60010
- Type: Center Cut
- Cutter Diameter Decimal Inch: 0.75
- Cutter Diameter Fractional Inch: 3/4
- Cutter Diameter Metric: 19.05
- Number of Flutes: 2
- Length of Cut Decimal Inch: 1
- Length of Cut Fractional Inch: 1
- Length of Cut Metric: 25.4
- Overall Length Decimal Inch: 5
- Overall Length Fractional Inch: 5
- Overall Length Metric: 127
- Material: Solid Carbide
- Surface Treatment: Un, UNCOATED
- Shank Diameter Decimal Inch: 0.75
- Shank Diameter Fractional Inch: 3/4
- Shank Type: Cylindrical
- Center Cutting: Yes
- Chipbreaker: No
- Country of Origin: US
- Hand Direction: Right Hand
- Has Attributes: Yes
- Has Image: Yes
- Length of Cut Multiple: (1x)
- Manufacturer Name: Helical Solutions
- Neck Diameter: 0.712in
- Overall Reach: 3-3/8in
- Reach Multiple: (4.5x)
- Web Thickness: 0.007in
- Application
- Item Features
Outstanding Performance and Accelerated Metal removal rates in Aluminum and Non-Ferrous Materials|High Performance in Makino MAG Machining Centers Capable of Elevated RPMs and Feed Rates|High Performance Tool Holders, providing Reduced Excess Stickout and Increased Rigidity
- Unique 3 teeth-to-center end geometry for ramping applications
- Reduced neck provides maximum strength in long reach and deep pocketing applications
- Wiper flat design leaves superior floor finish
- H6 Shank Tolerance for High Precision Tool Holders
- Uncoated tool offers an excellent option for aluminum finishing applications
- Zplus coating offers higher hardness and added lubricity for maximum performance
- Applicable Materials are Aluminum, Non-Ferrous Metal
- Reach (LBS) 3.3750 in (3-3/8)
- Neck Diameter 0.7120 in
