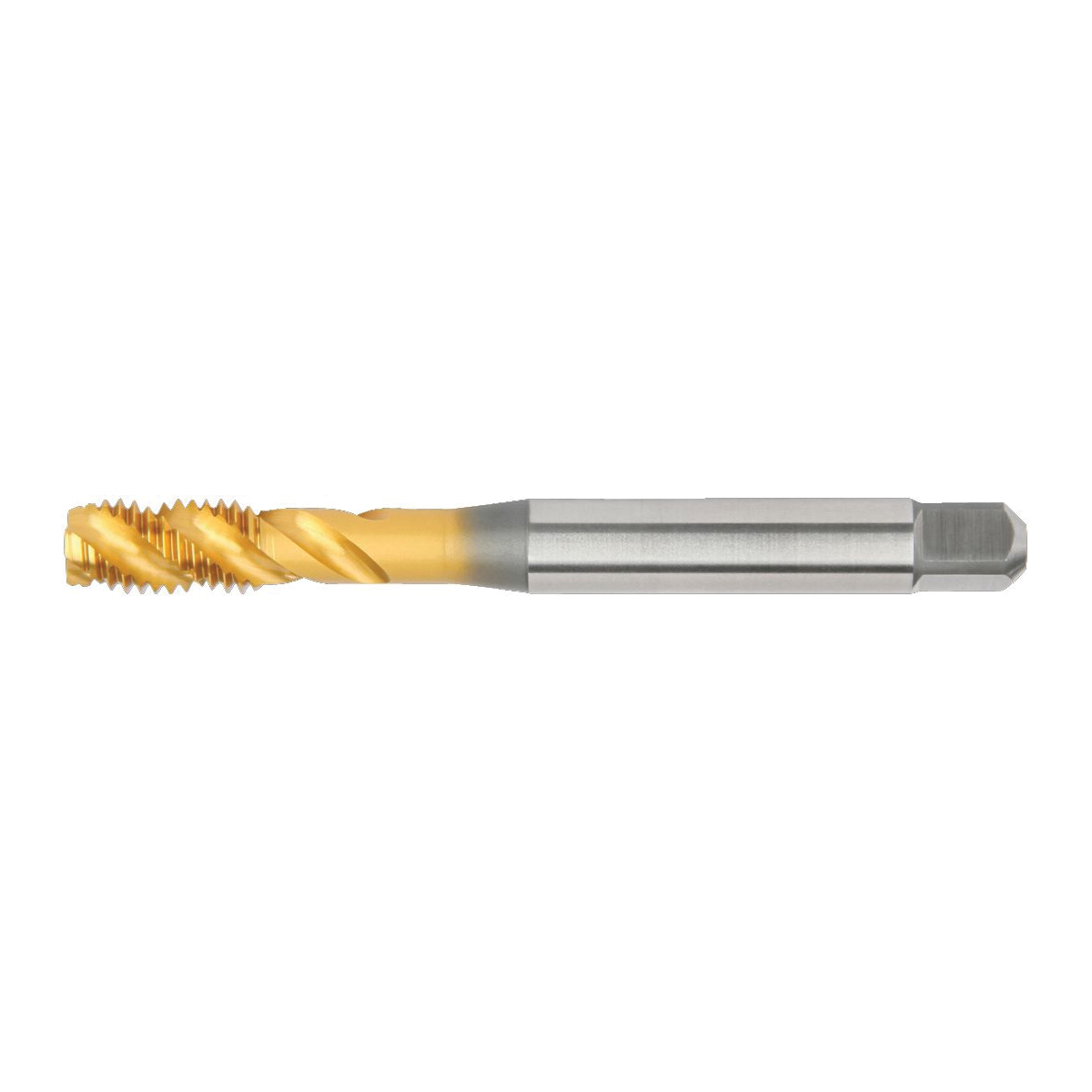

M10x1.5 ISO2 (6H) 3FL TAP DIN 371 E
M10x1.5 ISO2 (6H) 3FL TAP DIN 371 E
GRE6173216
6173216
35.91
/ EA
http://schema.org/OutOfStock
/Product/GRE6173216
- Chamfer: Bottoming
- Class of Fit: 6H
- Material: High Vanadium HSS-E
- Number of Flutes: 3
- Overall Length Decimal Inch: 100
- Overall Length Metric: 2540
- Series: VT-SFT TC
- Shank Diameter Decimal Inch: 0.394
- Shank Diameter Metric: 10
- Surface Treatment: Black Oxide
- System of Measurement: Metric
- Thread Length Decimal Inch: 0.591
- Thread Length Metric: 15
- Thread Size: M10x1.5
- Thread Standard: Coarse
- Type: Form E High Performance Multi-Purpose
- Applicable Materials: Carbon and Alloy Steels, Stainless Steels, Ductile Iron and Cast Aluminum
- Country of Origin: IT
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Name: WIDIA
VariTap™ is the high performance multi-purpose tapping solution from WIDIA. VariTap™ has an optimized geometry capable of working in a wide variety of ductile materials - including carbon and alloy steels, stainless steels, ductile iron and cast aluminum. VariTap™ reduces inventory costs without losing the benefit of high quality threads and consistent tool life. With a wide range of inch and metric standard sizes, pitch diameter limits, classes of fit, chamfer styles and coatings, VariTap™ offers the most expensive portfolio of multi-purpose taps available on the market. VariTap™ now includes ISO pipe taps for through and blind hole applications.
- Application
- Item Features
- Standards
For blind hole applications
- Spiral flute geometry optimized to provide efficient chip ejection in blind holes
- Manufactured from high vanadium HSS-E to provide long and consistent tool life
- Geometry designed to allow tapping of a wide variety of ductile materials
- Ideal for customers who have a variety of materials to machine
- Form E bottoming chamfer (1.5-2P) - for threading close to the bottom of blind holes
- WP49EG grade - HSS-E substrate with black oxide surface treatment
DIN 371
