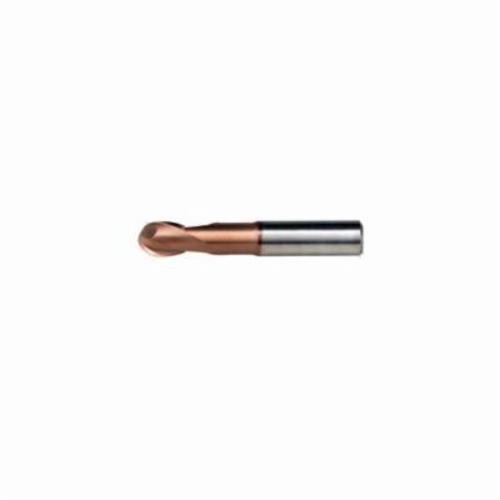

14.00MM S229 SC BALL NOSED END MILL
14.00MM S229 SC BALL NOSED END MILL
DOR6706528
6706528
226.57
/ EA
http://schema.org/OutOfStock
/Product/DOR6706528
- Cutter Diameter Decimal Inch: 0.551
- Cutter Diameter Metric: 14
- Type: Type N Ball Nose Extra Short Length
- Number of Flutes: 2
- Length of Cut Decimal Inch: 1.26
- Length of Cut Metric: 32
- Overall Length Decimal Inch: 90
- Overall Length Metric: 2286
- Material: Carbide
- Surface Treatment: TiSiN Coated
- Helix Angle: 30°
- Shank Diameter Decimal Inch: 0.551
- Shank Diameter Metric: 14
- Series: S229
- Has Attributes: Yes
- Has Image: Yes
- Application
- Item Features
- Standards
For Shank Cutter Ball nosing, Slotting, Ramping
- 20 Lifecycle
- Applicable materials are alloy steel and stainless steel
- 7 mm corner radius
- 3 deg of rake
- H9 mill dia tolerance
- 13 mm Neck diameter
- 44 mm Neck length
DIN 6535HA|PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov
