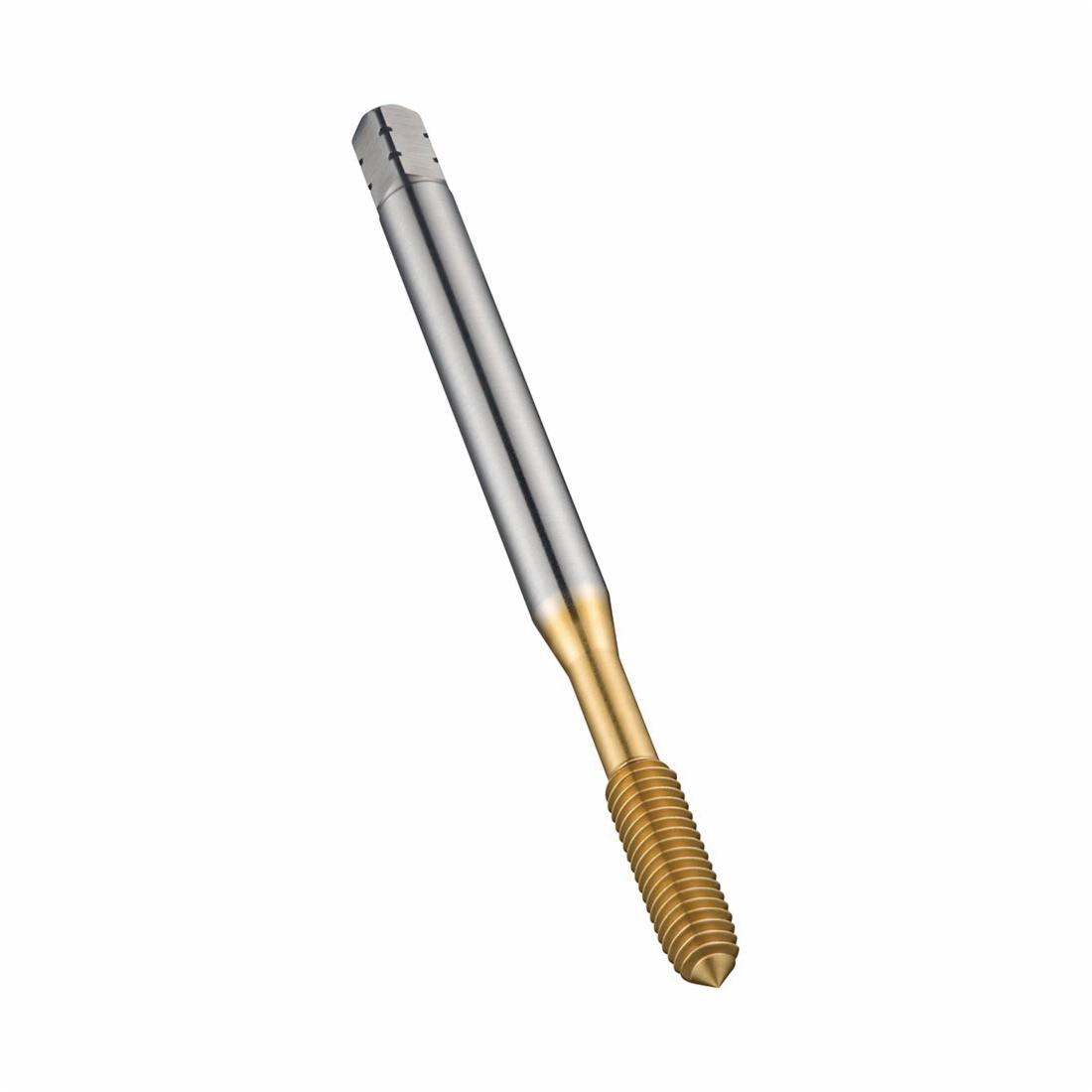

M12X1.75MM E292 HSS-E MACHINE FORMING
M12X1.75MM E292 HSS-E MACHINE FORMING
DOR6305739
6305739
102.06
/ EA
http://schema.org/OutOfStock
/Product/DOR6305739
- Chamfer: Semi-Bottoming
- Class of Fit: 6HX
- Hand Direction: Right Hand
- Material: HSS-E
- Number of Flutes: 5
- Overall Length Decimal Inch: 110
- Overall Length Metric: 2794
- Series: E292
- Shank Diameter Decimal Inch: 0.354
- Shank Diameter Metric: 9
- Square Size Decimal Inch: 0.276
- Square Size Metric: 7
- Surface Treatment: TiN Coated
- Thread Length Decimal Inch: 0.906
- Thread Length Fractional Inch: 29/32
- Thread Length Metric: 23
- Thread Size: M12x1.75
- Thread Standard: Coarse
- Type: Fluteless Through/Blind Hole
- Has Attributes: Yes
- Has Image: Yes
- System of Measurement: Metric
- Tap Drill Size: 11.2mm
- Item Features
- Standards
- High performance and productivity in a wide range of materials
- Chip-free threading operation produces a stronger thread than cutting taps with increased load bearing capabilities
- Higher cutting speeds are, therefore, recommended
- Greater accuracy of finished thread with lower surface roughness
- Highly stable design means less risk of tap breakage and optimum process security
DIN 2174|PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov
