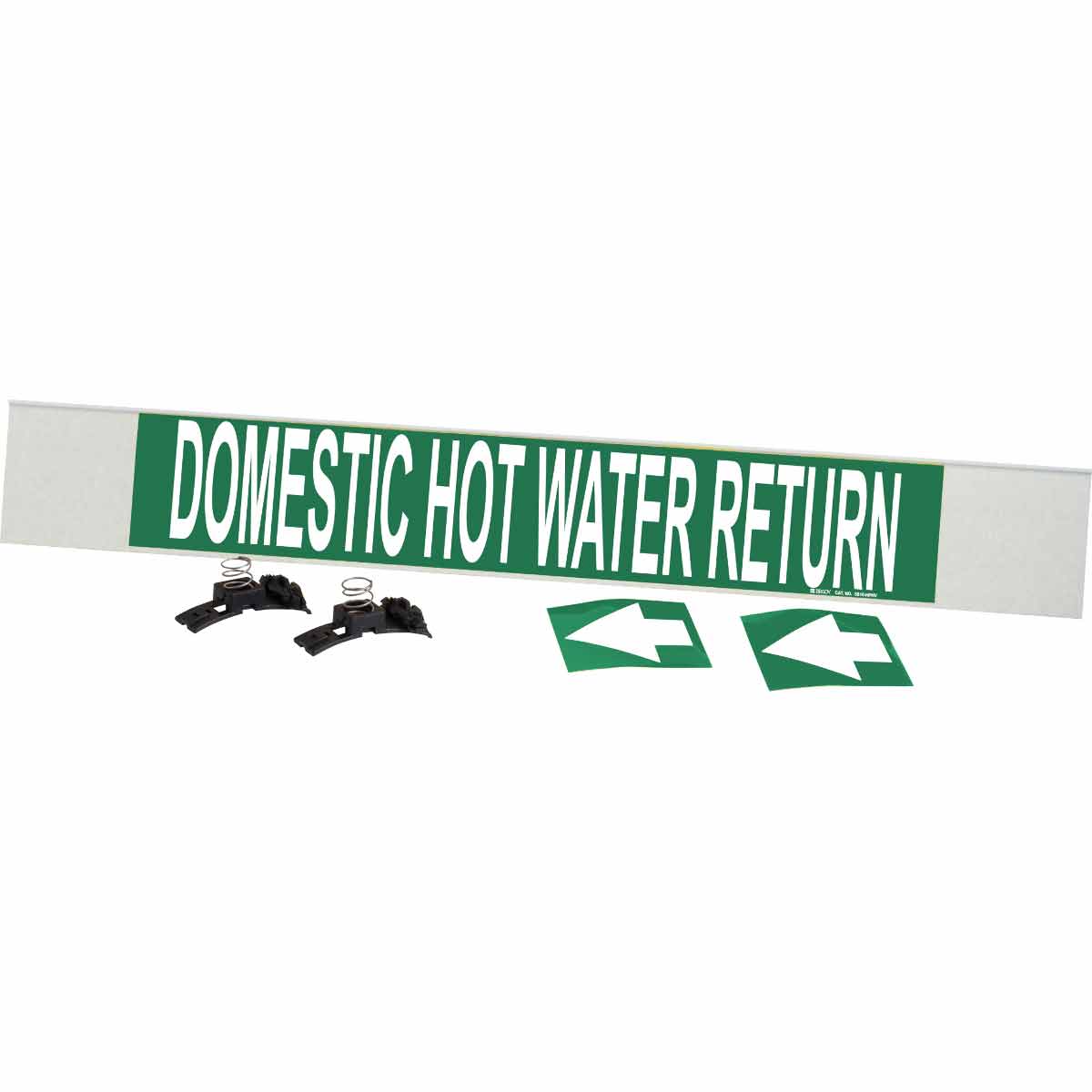

"DOMESTIC HOT WATER RETURN" PIPE MARKERS
BRA108915
MFG #: 5816-HPHV
$25.61
/ EA
- Height: 1-1/8 in
- Legend/Background Color: White on Green
- Markers Per Card: 1
- Material: B-681/B-883 Fiberglass/Polyester Laminate
- Width: 7 in
- Type: HPHV Style High Performance Permanent Acrylic
- Legend: DOMESTIC HOT WATER RETURN with Left Arrow Symbol
- Fits Pipe Diameter: 8 in or Greater
- Mounting Type: Strap-On
The B-681 high performance pipemarker is a surface printed polyester label with a polyester overlaminate that is applied to a fiberglass plastic carrier. Ideal for use in areas where excellent chemical and abrasion resistance is required.
- Application
- Includes
- Item Features
- Standards
- Warranty
Pipe and Valve Marking and Indoor/Outdoor Applications
(2) Heavy Duty Mounting Clips
- Markers resist abrasion, chemicals, UV, high humidity, water and outdoor weathering
- English language
- Apply mounting clips to pipe using continuous stainless steel strapping
- Easy strap-on installation of fiberglass reinforced plastic marker carrier
- 3-1/2 in H letter
- Overlaminated graphics are factory applied to a fiberglass plastic carrier
- 5 to 8 years average outdoor durability
- Abrasion and chemical-resistant
ANSI A13.1-1996|ANSI A13.1-2007|ASME A13.1-1996|OSHA 29 CFR 1910.261
Limited
