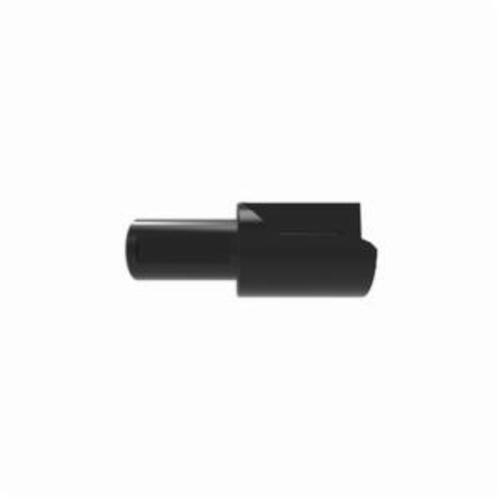

3.0"-3.2" REV. 1XD REV DRILL HOLDER
3.0"-3.2" REV. 1XD REV DRILL HOLDER
AMESP48X10-50M
SP48X10-50M
1182.00
/ EA
http://schema.org/OutOfStock
/Product/AMESP48X10-50M
- Coolant Hole Thread: 1/4in BSP
- Country of Origin: US
- Drill Body Length: 116.5mm
- Drill Depth: 82.2mm
- Drill Depth by Diameter Ratio: 1XD
- Drilling Capacity: 76.2 to 81.3mm
- Manufacturer Name: Allied Machine & Engineering
- Overall Length Decimal Inch: 196.5
- Overall Length Fractional Inch: 196-1/2
- Overall Length Metric: 4991.1
- Series: SP48
- Shank Diameter Decimal Inch: 1.969
- Shank Diameter Fractional Inch: 1-31/32
- Shank Diameter Metric: 50
- Shank Type: Straight
- Type: Stacked Plate Straight Flute
- Has Attributes: Yes
- Has Image: Yes
The Revolution Drill® is an extremely effective tool designed to drill large diameter holes on low horse power machines while maintaining high penetration rates. Excellent for a variety of applications including stacked plates.
- Item Features
- Drills from solid with no pilot required or can open an existing hole while ignoring core shifts up to 1/8 in
- Ideal on low horsepower machines while maintaining high penetration rates
- Multi-insert design reduces chip size for easy chip evacuation
- Diameter adjustment reduces inventory and cost
- Adjustable up to 0.2 in on diameter
- Available for stack plate applications
- Replaceable and adjustable cartridges
- Indexable inserts available in AM300® and AM200® coatings as well as high rake and general purpose geometries
- Integral shanks available for increased rigidity
