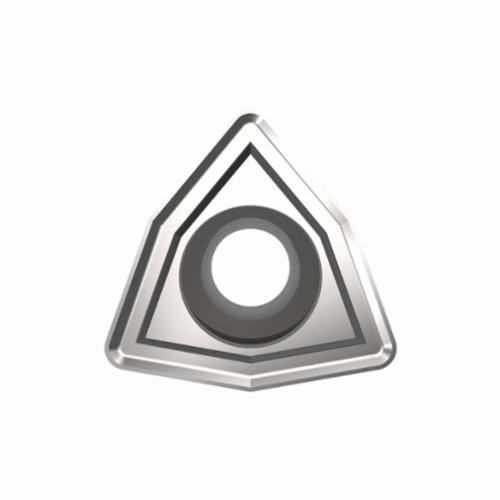

UNCOATED WCMX 05T308 C2 DRILL INSERT
UNCOATED WCMX 05T308 C2 DRILL INSERT
AMEOP-05T308-2U
OP-05T308-2U
16.50
/ EA
http://schema.org/OutOfStock
/Product/AMEOP-05T308-2U
- Insert Size: 05T308
- Insert Style: WCMX
- Surface Treatment: Uncoated
- Type: General Purpose
- Inscribed Circle: 5/16in
- Manufacturer Grade: K25
- Material Grade: C2
- Shape: Trigon
- Material: Carbide
- Has Attributes: Yes
- Has Image: Yes
The Opening Drill® is an extremely effective tool designed to enlarge existing holes, eliminating the need for multiple boring passes. Adjustable cartridges cover a wide range of diameters reducing inventory cost. The Revolution Drill® is an extremely effective tool designed to drill large diameter holes on low horse power machines while maintaining high penetration rates. Excellent for a variety of applications including stacked plates.
- Application
- Item Features
For use with revolution drill and core drill
- Opens an existing hole in a single operation allowing for large amounts of material removal while ignoring core shifts up to 1/8 in
- Ideal on low horsepower machines while maintaining high penetration rates
- Multi-insert design reduces chip size for easy chip evacuation
- Can be used in rough boring operations
- Suitable for use in lathes and mills
- Diameter adjustment reduces inventory and cost
- Replaceable and adjustable cartridges
- Integral shanks available for increased rigidity
- Adjustable up to 0.2 in on dia
