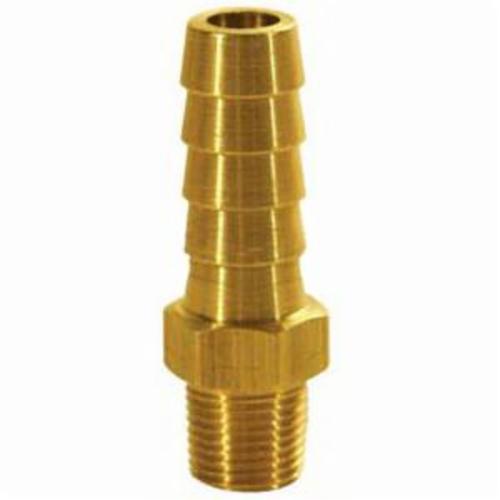

1/4 SHANK X 1/8 NPT MALE INSERT
1/4 SHANK X 1/8 NPT MALE INSERT
DIX1020402C
1020402C
1.48
/ EA
http://schema.org/OutOfStock
/Product/DIX1020402C
- Barb Length: 0.97 in
- Country of Origin: US
- Domestic/Import: Domestic
- Fitting/Connector Type: Adapter
- Hex Size: 1/2 in
- Length: 1.57 in
- Manufacturer Name: Dixon Valve & Coupling
- Material: 360 CDA Brass, Brass
- Nominal Size: 1/4 in x 1/8-27, 1/8 x 1/4 in
- Number of Barb: 4
- Pressure Rating: 150 psi
- Series: 102
- Temperature Rating: -40 to 160 deg F
- Type: Standard
- End Type: Barb x MNPT, MNPT x Hose Barb
- Has Attributes: Yes
- Has Image: Yes
- Application
- Item Features
For use with hose clamps or crimped ferrules
- 0.97 in L barb
- 4 barbs
- Fixed fitting swivel torque
- Brass for corrosion resistance, ductility at high temperatures, and low magnetic permeability
- Barbed fitting for a tight seal on hoses
- Dryseal construction
