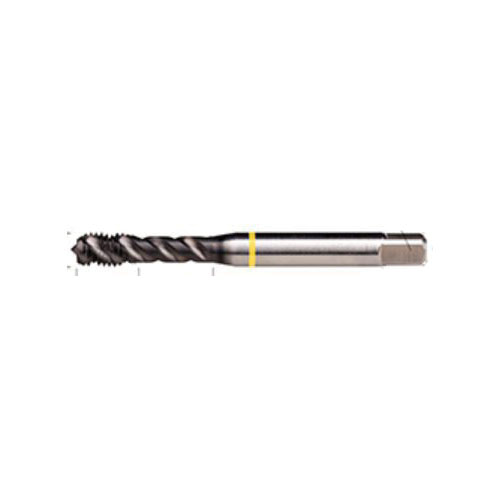

M14X2.00MM E412 YELLOW SHARK

M14X2.00MM E412 YELLOW SHARK

DOR7441193 7441193
125.55 / EA
http://schema.org/OutOfStock
M14X2.00MM E412 YELLOW SHARK
  • Applicable Materials: Cast Steel, Non-Ferrous Metals, Stainless Steel and Steel
  • Chamfer: C
  • Class of Fit: 6H
  • Hand Direction: Right Hand
  • Material: HSS-E-PM
  • Number of Flutes: 3
  • Overall Length Decimal Inch: 110
  • Overall Length Metric: 2794
  • Series: E412
  • Shank Diameter Decimal Inch: 0.433
  • Shank Diameter Metric: 11
  • Surface Treatment: PVD/TiAlN Coated
  • Thread Length Decimal Inch: 0.787
  • Thread Length Metric: 20
  • Thread Size: M14x2
  • Thread Standard: M
  • Type: 48° Helix Machine Back Tapered
  • Has Attributes: Yes
  • Has Image: Yes
  • System of Measurement: Metric
Spiral flute tap Yellow Shark with chamfer form C with a 2-3xP semi-bottoming lead, for ISO-Metric thread M14 with 2 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 11 mm shank and 9 mm square drive, powder metallurgical HSS-E with TiAlN-Top coating and 48 deg helix angle for 3xD blind hole threading in steel and cast steel.
QTY
Add to List
  • Application
  • Item Features
  • Standards
For threading applications
  • Surface treatment TiAlN-top - coating with an additional edge treatment
  • Flute geometry - spiral flute angle of 48 deg facilitates smooth and fast chip evacuation, making it suitable for threading deep blind holes (3xD)
  • The increased thread relief also enables higher cutting speeds in high strength steels
  • Cutting geometry - the special three radii profile with a constant rake angle along the flute length leads to a better control of cutting properties and prevents nest formation of chips
  • Back taper further facilitates chip evacuation, reducing chipping on the last threads of the taps and also reducing torque when the tap reverses
  • Tapping attachment (recommendation) - when using 48 deg spiral flute yellow shark taps, it is recommended to use a tool holder with minimal float or soft start
DIN 376|PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov|RoHS Directives EU 2015/863/2017/2102
