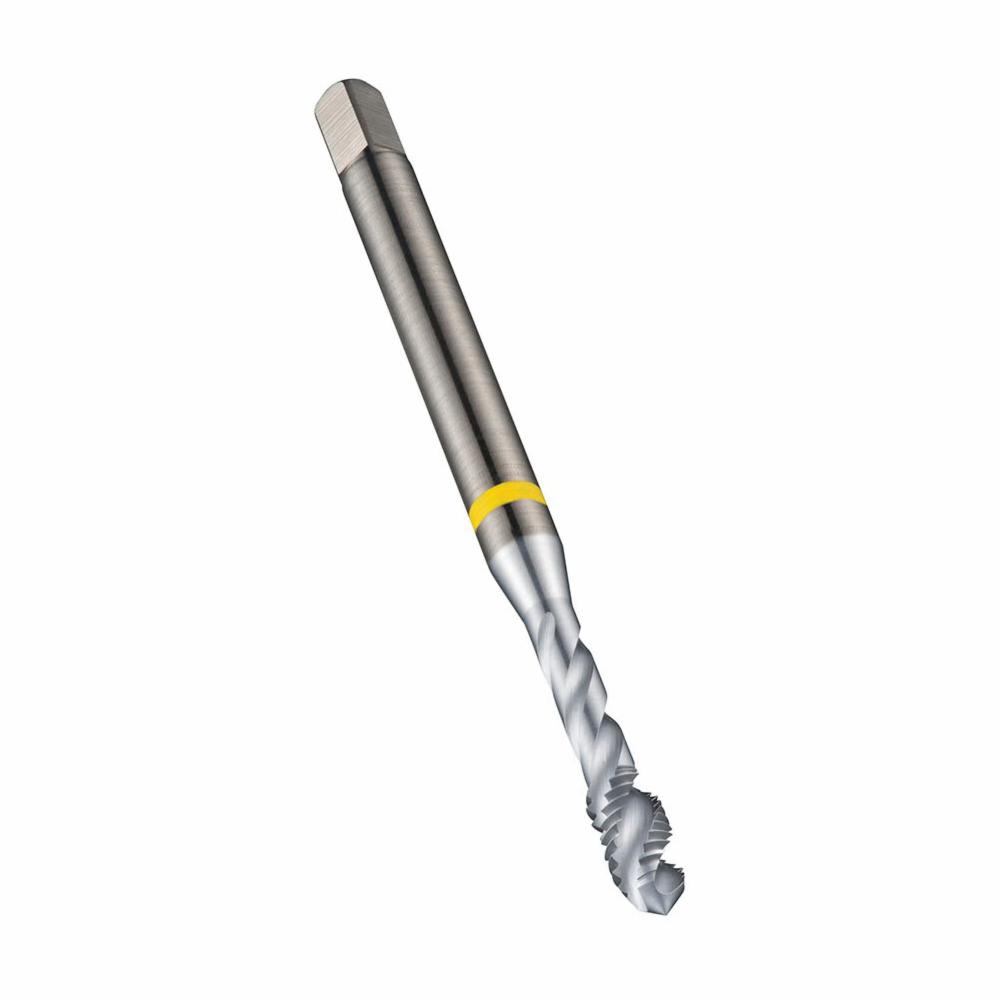

M14X2.00MM E298 HSS-E PM MACHINE
M14X2.00MM E298 HSS-E PM MACHINE
DOR6290574
6290574
69.26
/ EA
http://schema.org/OutOfStock
/Product/DOR6290574
- Applicable Materials: Alloy Steel, Carbon Steels, Copper and Brass
- Chamfer: Semi-Bottoming
- Class of Fit: 6H
- Hand Direction: Right Hand
- Material: HSS-E
- Number of Flutes: 3
- Overall Length Decimal Inch: 110
- Overall Length Metric: 2794
- Series: E298
- Shank Diameter Decimal Inch: 0.433
- Shank Diameter Metric: 11
- Surface Treatment: Hard Chrome Coated
- Thread Length Decimal Inch: 0.787
- Thread Length Metric: 20
- Thread Size: M14x2
- Thread Standard: Coarse
- Flute Direction: Right Hand
- Has Attributes: Yes
- Has Image: Yes
- System of Measurement: Metric
- Application
- Item Features
- Standards
For blind hole applications
- Increased tool life as a result of an optimum combination of material and geometry, which gives low material adhesion
- The tap geometry provides adequate flute space resulting in negligible swarf congestion and therefore a continuous production process
- High performance production in low alloy steels, copper and brass
- Hard chrome plating (Cr) under specific conditions increases surface hardness significantly, achieving values up to 68HRc
- It prevents the swarf from sticking and is especially suitable when tapping structural grade steels, carbon steels, copper and brass
DIN 371/376|PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov
