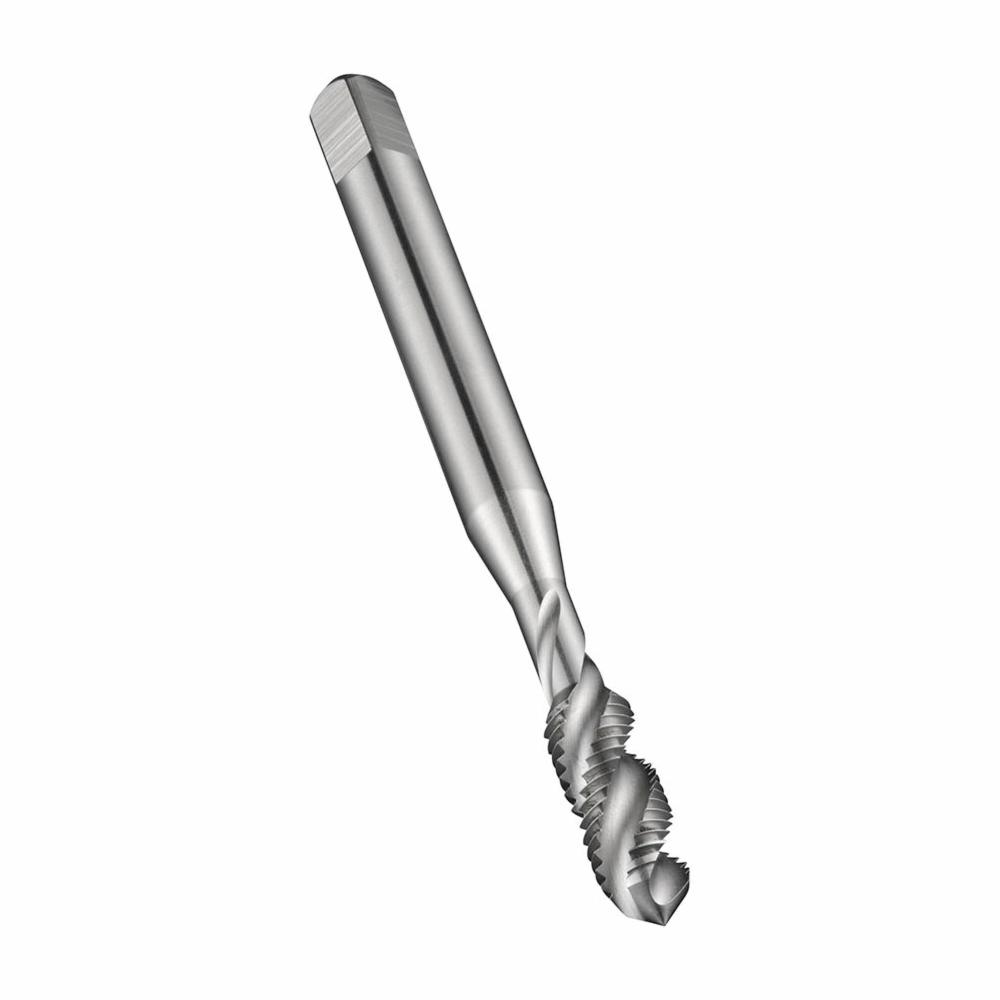

M10x1.50MM E621 HSS EGM MACHINE TAP
M10x1.50MM E621 HSS EGM MACHINE TAP
DOR5978401
5978401
73.14
/ EA
http://schema.org/OutOfStock
/Product/DOR5978401
- Applicable Materials: Aluminum, Magnesium and Other Non-Ferrous Materials
- Chamfer: Semi-Bottoming
- Class of Fit: 6H
- Hand Direction: Right Hand
- Material: HSS
- Number of Flutes: 3
- Overall Length Decimal Inch: 89
- Overall Length Metric: 2260.6
- Series: E621
- Shank Diameter Decimal Inch: 0.354
- Shank Diameter Metric: 9
- Surface Treatment: Bright
- Thread Length Decimal Inch: 0.866
- Thread Length Metric: 22
- Thread Limit: H6
- Thread Size: M10x1.5
- Thread Standard: EGM
- Flute Direction: Right Hand
- Has Attributes: Yes
- Has Image: Yes
- System of Measurement: Metric
- Application
- Item Features
- Standards
For blind hole applications
- Designed for use in aluminum, magnesium and other non-ferrous materials where taps of this type are most commonly used
- Taps suitable for other materials can be furnished on request
- STI taps are dimensionally oversize and utilize a larger tap drill size so that the thread they produce will accept a helical coil wire screw thread insert of the same nominal size and pitch
ISO Certified
