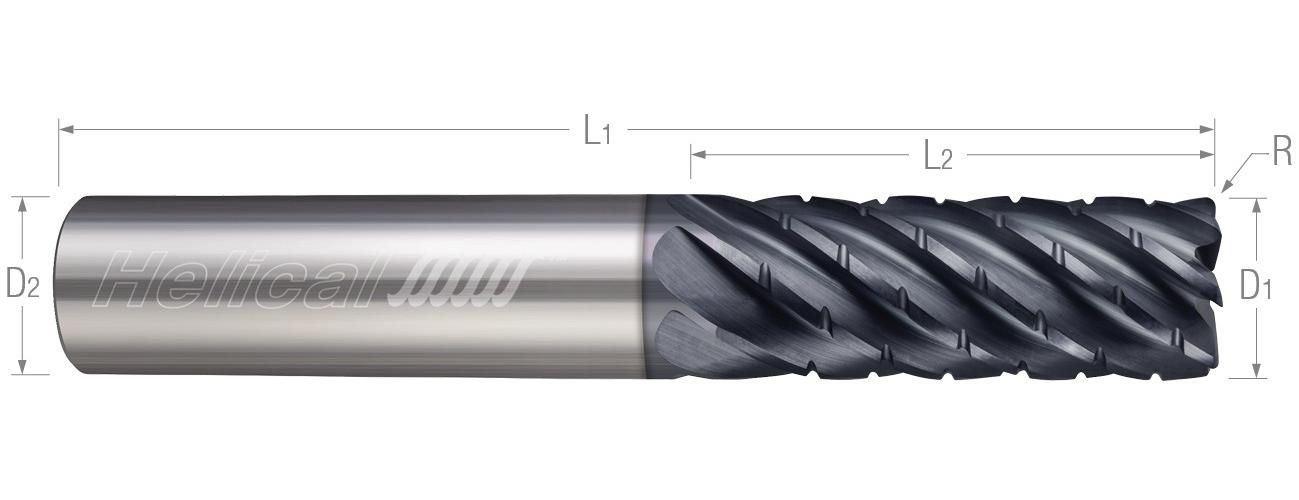

1/2 1/2SHK 1-1/4LOC END MILL
1/2 1/2SHK 1-1/4LOC END MILL
HESL87182
87182
125.80
/ EA
http://schema.org/OutOfStock
/Product/HESL87182
- Type: Center Cut
- Cutter Diameter Decimal Inch: 0.5
- Cutter Diameter Fractional Inch: 1/2
- Cutter Diameter Metric: 12.7
- Length of Cut Decimal Inch: 1.25
- Length of Cut Fractional Inch: 1-1/4
- Length of Cut Metric: 31.75
- Material: Solid Carbide
- Number of Flutes: 7
- Overall Length Decimal Inch: 3
- Overall Length Fractional Inch: 3
- Overall Length Metric: 76.2
- Shank Diameter Decimal Inch: 0.5
- Shank Diameter Fractional Inch: 1/2
- Shank Type: Cylindrical
- Surface Treatment: APLUS
- Corner Radius: 0.01 in
- Country of Origin: US
- Hand Direction: Right Hand
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Name: Helical Solutions
- Application
- Item Features
High Efficiency Milling (HEM)
- Variable pitch geometry results in higher quality parts by decreasing chatter and harmonics
- Geometry proven to achieve maximum feed rates in steels up to 45 Rc
- Reduced neck provides maximum strength in long reach and deep pocketing applications
- End cutting geometry (non-center cutting)
- H6 Shank Tolerance for High Precision Tool Holders
- Tplus coating offers high hardness for improved tool life and increased edge strength in difficult-to-machine materials
- Applicable Materials are Cast Iron, Steel, Stainless Steel, Titanium
