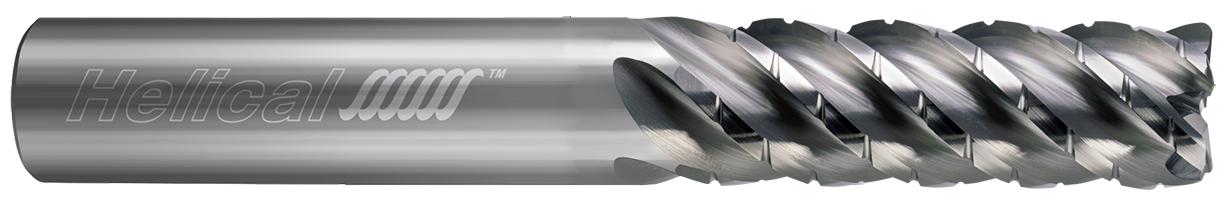

1/2 5FL 1/2SHK END MILL
1/2 5FL 1/2SHK END MILL
HESL84273
84273
149.70
/ EA
http://schema.org/OutOfStock
/Product/HESL84273
- Type: Center Cut
- Cutter Diameter Decimal Inch: 0.5
- Cutter Diameter Fractional Inch: 1/2
- Cutter Diameter Metric: 12.7
- Length of Cut Decimal Inch: 1.625
- Length of Cut Fractional Inch: 1-5/8
- Length of Cut Metric: 41.275
- Material: Solid Carbide
- Number of Flutes: 5
- Overall Length Decimal Inch: 4
- Overall Length Fractional Inch: 4
- Overall Length Metric: 101.6
- Shank Diameter Decimal Inch: 0.5
- Shank Diameter Fractional Inch: 1/2
- Shank Type: Cylindrical
- Surface Treatment: Un, UNCOATED
- Center Cutting: Yes
- Chipbreaker: Yes
- Corner Radius: 1/8 in, 1/8in
- Country of Origin: US
- Hand Direction: Right Hand
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Name: Helical Solutions
- Weldon Flat: No
- Application
- Item Features
Optimal Performance in High Efficiency Milling (HEM) of Aerospace Aluminum Alloys with Excellent Performance in other Non-Ferrous Alloys
- Radius center is offset .005 in from OD and end of tool
- H6 Shank Tolerance for High Precision Tool Holders
- Zplus coating offers higher hardness and added lubricity for maximum performance in aluminum and non-ferrous alloys
- Aplus coating for added lubricity and higher speeds and feeds in a wide variety of ferrous metals and titanium alloys
- Applicable Materials are Aluminum, Non-Ferrous Metal
