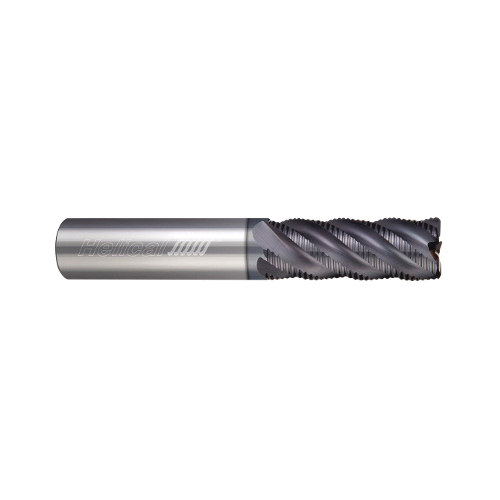

1IN 4FL 0.06CR 1-1/4LOC END MILL
1IN 4FL 0.06CR 1-1/4LOC END MILL
HESL54377
54377
680.60
/ EA
http://schema.org/OutOfStock
/Product/HESL54377
- Type: Center Cut Imperial Multi-Flute Variable Pitch
- Cutter Diameter Decimal Inch: 1
- Cutter Diameter Fractional Inch: 1
- Cutter Diameter Metric: 25.4
- Flute Type: Spiral
- Length of Cut Decimal Inch: 1.25
- Length of Cut Fractional Inch: 1-1/4
- Length of Cut Metric: 31.75
- Material: Carbide
- Number of Flutes: 4
- Overall Length Decimal Inch: 4
- Overall Length Fractional Inch: 4
- Overall Length Metric: 101.6
- Shank Diameter Decimal Inch: 1
- Shank Diameter Fractional Inch: 1
- Surface Treatment: Aplus Coated
- Center Cutting: Yes
- Chipbreaker: No
- Corner Radius: 0.06 in, 0.06in
- Country of Origin: US
- Has Attributes: Yes
- Has Image: Yes
- Length of Cut Multiple: (1x)
- Manufacturer Name: Helical Solutions
- Series: HXVR
- Web Thickness: 0.012in
The staggered low profile edge geometry of this multi-flute rougher allows for superior chip control and minimized cutting forces on the tool. This results in smoother machining and a more efficient metal removal process.
- Item Features
- Staggered low profile edge geometry for chip control and minimized cutting forces
- Multiple flutes
- h6 shank tolerance for high precision tool holders
- Aplus coated for added lubricity, higher speeds and feeds and increased wear-resistance
