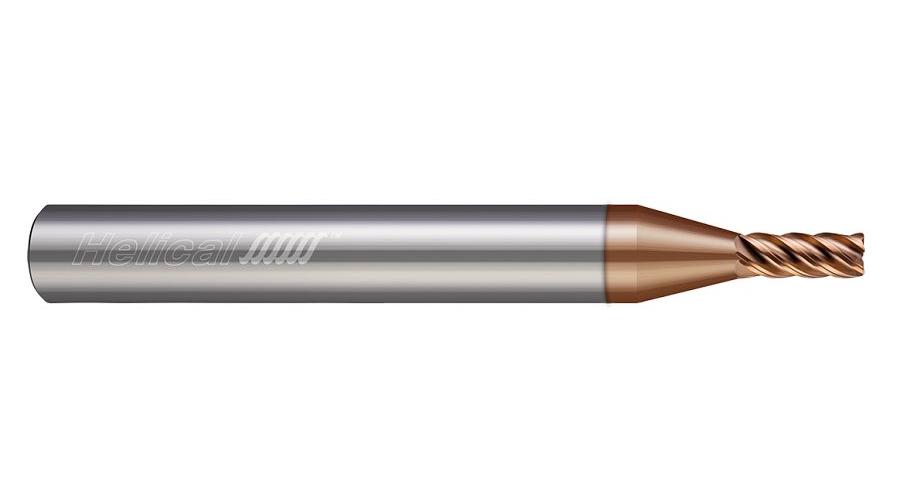

1/16 5FL .010CR CARB 3/16LOC END MILL
1/16 5FL .010CR CARB 3/16LOC END MILL
HESL84061
84061
59.30
/ EA
http://schema.org/OutOfStock
/Product/HESL84061
- Type: Center Cut
- Cutter Diameter Decimal Inch: 0.0625
- Cutter Diameter Fractional Inch: 1/16
- Cutter Diameter Metric: 1.587
- Corner Radius: 0.01 in, 0.01in
- Number of Flutes: 5
- Length of Cut Decimal Inch: 0.1875
- Length of Cut Fractional Inch: 3/16
- Length of Cut Metric: 4.762
- Overall Length Decimal Inch: 2.5
- Overall Length Fractional Inch: 2-1/2
- Overall Length Metric: 63.5
- Material: Solid Carbide
- Surface Treatment: TPLUS, Tplus Coated
- Shank Diameter Decimal Inch: 0.25
- Shank Diameter Fractional Inch: 1/4
- Shank Type: Cylindrical
- Center Cutting: Yes
- Chipbreaker: No
- Country of Origin: US
- Hand Direction: Right Hand
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Name: Helical Solutions
- Weldon Flat: No
- Application
- Item Features
Increased Wear Resistance in a Wide Range of Ferrous Materials, including Low and Medium Alloy Steels, Tool Steels and Cast Iron|Excellent Performance in Light Profiling|High Efficiency Milling (HEM)|Finishing Applications
- 5 flute variable pitch design for reduced harmonics and increased feed rates
- Reduced neck provides maximum strength in long reach and deep pocketing applications
- H6 Shank Tolerance for High Precision Tool Holders
- Aplus coating offers added lubricity and high temperature resistance for faster speeds and feeds and improved tool life
- Applicable Materials are Cast Iron, Steel, Stainless Steel
