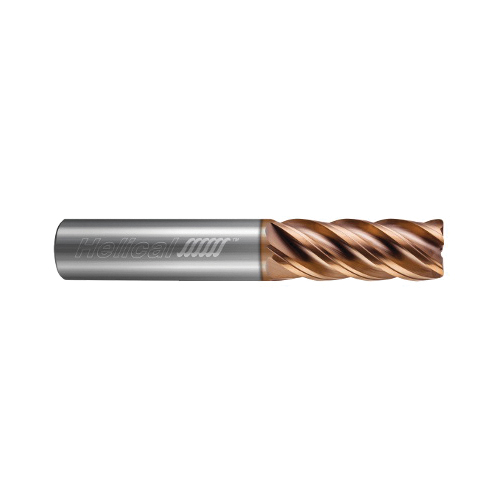

3/16 5FL 0.01CR 5/16LOC END MILL
3/16 5FL 0.01CR 5/16LOC END MILL
HESL59856
59856
36.10
/ EA
http://schema.org/OutOfStock
/Product/HESL59856
- Type: Center Cut Imperial Variable Pitch
- Cutter Diameter Decimal Inch: 0.1875
- Cutter Diameter Fractional Inch: 3/16
- Cutter Diameter Metric: 4.762
- Corner Radius: 0.01 in, 0.01in
- Number of Flutes: 5
- Length of Cut Decimal Inch: 0.3125
- Length of Cut Fractional Inch: 5/16
- Length of Cut Metric: 7.938
- Overall Length Decimal Inch: 2
- Overall Length Fractional Inch: 2
- Overall Length Metric: 50.8
- Material: Carbide
- Surface Treatment: Tplus Coated
- Shank Diameter Decimal Inch: 0.1875
- Shank Diameter Fractional Inch: 3/16
- Series: HEV-5
- Shank Type: Reduced
- Center Cutting: Yes
- Chipbreaker: No
- Country of Origin: US
- Flute Type: Spiral
- Has Attributes: Yes
- Has Image: Yes
- Length of Cut Multiple: (1.5x)
- Manufacturer Name: Helical Solutions
The 5 flute design of the HEV-5 provides a significant lift in tool life and productivity, while increasing feed rates over 4 fluted tools. Its variable pitch geometry, high flute count and Aplus coating make it excel in tough materials like steels, high temperature alloys and titanium.
- Application
- Item Features
Finishing and Light Profiling Applications
- Excellent performance in light profiling, high efficiency milling (HEM) and finishing applications
- 5 flute variable pitch design for reduced harmonics and increased feed rates
- Reduced neck provides maximum strength in long reach and deep pocketing applications
- h6 shank tolerance for high precision tool holders
