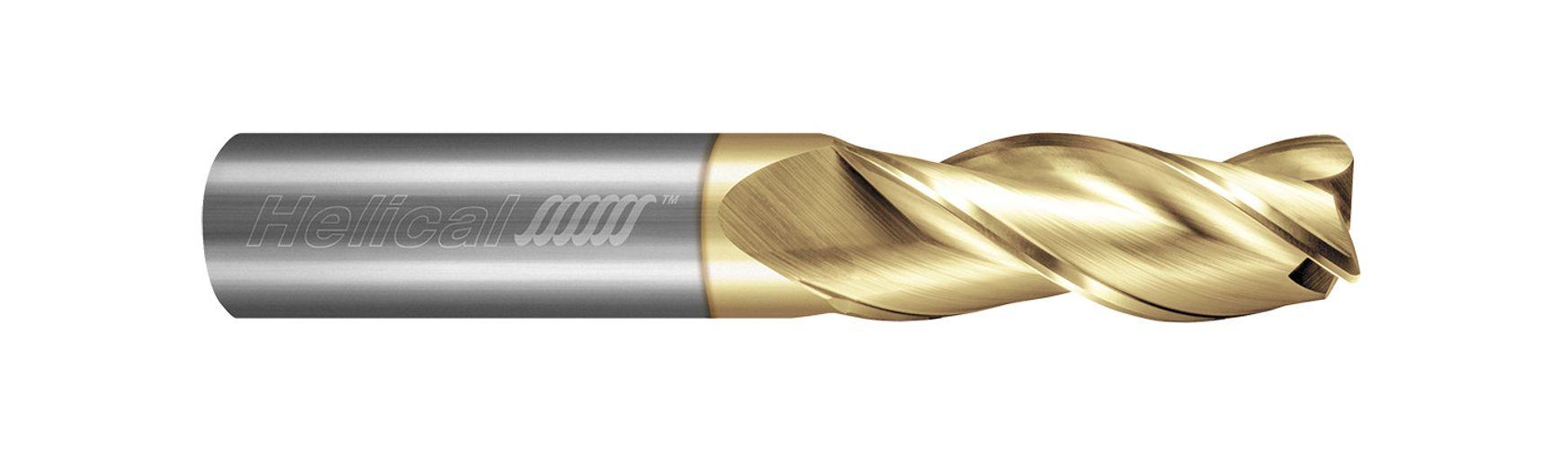

10MM 3FL 1.00MMCR 15MMLOC END MILL
10MM 3FL 1.00MMCR 15MMLOC END MILL
HESL59707
59707
88.10
/ EA
http://schema.org/OutOfStock
/Product/HESL59707
- Type: Center Cut
- Cutter Diameter Decimal Inch: 0.39, 0.394
- Cutter Diameter Metric: 10, 9.906
- Corner Radius: 0.039 in, 1mm
- Number of Flutes: 3
- Length of Cut Decimal Inch: 0.59, 0.591
- Length of Cut Metric: 14.986, 15.011
- Overall Length Decimal Inch: 2.48, 63
- Overall Length Metric: 1600.2, 62.992
- Material: Solid Carbide
- Surface Treatment: ZPLUS, Zplus Coated
- Helix Angle: 35 deg
- Shank Diameter Decimal Inch: 0.39, 0.394
- Shank Diameter Metric: 10
- Shank Type: Cylindrical
- Center Cutting: Yes
- Chipbreaker: No
- Country of Origin: US
- Hand Direction: Right Hand
- Has Attributes: Yes
- Has Image: Yes
- Length of Cut Multiple: (1.5x)
- Manufacturer Name: Helical Solutions
- Application
- Item Features
Outstanding Performance and Accelerated Metal removal rates in Aluminum and Non-Ferrous Materials|Tough Roughing Applications with 3 flutes and 35
- Unique 3 teeth-to-center end geometry for ramping applications
- Reduced neck provides maximum strength in long reach and deep pocketing applications
- Wiper flat design leaves superior floor finish
- H6 Shank Tolerance for High Precision Tool Holders
- Uncoated tool offers an excellent option for aluminum finishing applications
- Zplus coating offers higher hardness and added lubricity for maximum performance
- Applicable Materials are Aluminum, Non-Ferrous Metal
- Metric 1
