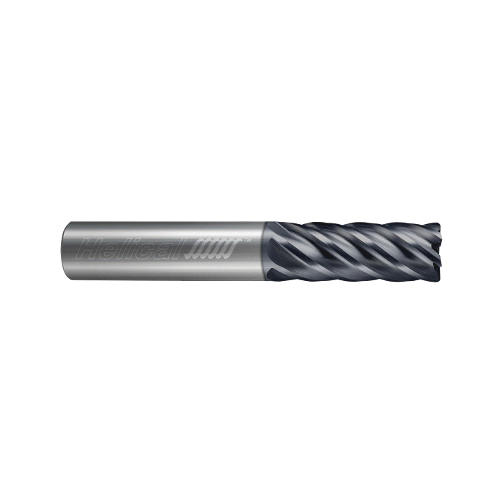

3/4 6FL 0.03CR 1INLOC END MILL
3/4 6FL 0.03CR 1INLOC END MILL
HESL59354
59354
390.90
/ EA
http://schema.org/OutOfStock
/Product/HESL59354
- Type: Center Cut Imperial Variable Pitch
- Cutter Diameter Decimal Inch: 0.75
- Cutter Diameter Fractional Inch: 3/4
- Cutter Diameter Metric: 19.05
- Corner Radius: 0.03 in, 0.03in
- Number of Flutes: 6
- Length of Cut Decimal Inch: 1
- Length of Cut Fractional Inch: 1
- Length of Cut Metric: 25.4
- Overall Length Decimal Inch: 3
- Overall Length Fractional Inch: 3
- Overall Length Metric: 76.2
- Material: Carbide
- Surface Treatment: Aplus Coated
- Shank Diameter Decimal Inch: 0.75
- Shank Diameter Fractional Inch: 3/4
- Series: HEV-6
- Center Cutting: Yes
- Chipbreaker: No
- Country of Origin: US
- Flute Type: Spiral
- Has Attributes: Yes
- Has Image: Yes
- Length of Cut Multiple: (1x)
- Manufacturer Name: Helical Solutions
- Web Thickness: 0.006in
The HEV-6 is designed for ferrous materials, high temperature alloys and titanium and is built for excellence in High Efficiency Milling (HEM) applications. Its variable pitch design and high flute count make it a durable and long-lasting tool, even in tough materials.
- Application
- Item Features
Finishing and Light Profiling Applications
- Excellent performance in light profiling, high efficiency milling (HEM) and finishing applications
- Variable pitch geometry results in higher quality parts by decreasing chatter and harmonics
- h6 shank tolerance for high precision tool holders
- Aplus coating for added lubricity, higher speeds and feeds and increased wear-resistance
