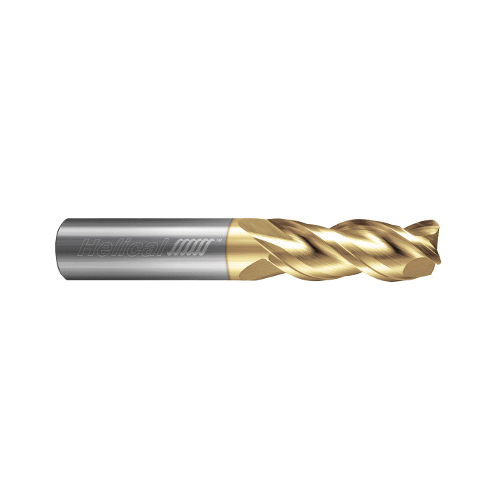

1/2 3FL 0.03CR 1-5/8LOC END MILL
1/2 3FL 0.03CR 1-5/8LOC END MILL
HESL48436
48436
139.40
/ EA
http://schema.org/OutOfStock
/Product/HESL48436
- Type: Center Cut Imperial Variable Pitch
- Cutter Diameter Decimal Inch: 0.5
- Cutter Diameter Fractional Inch: 1/2
- Cutter Diameter Metric: 12.7
- Corner Radius: 0.03 in, 0.03in
- Number of Flutes: 3
- Length of Cut Decimal Inch: 1.625
- Length of Cut Fractional Inch: 1-5/8
- Length of Cut Metric: 41.275
- Overall Length Decimal Inch: 4
- Overall Length Fractional Inch: 4
- Overall Length Metric: 101.6
- Material: Carbide
- Surface Treatment: Zplus Coated
- Helix Angle: 40 deg
- Shank Diameter Decimal Inch: 0.5
- Shank Diameter Fractional Inch: 1/2
- Series: H40ALV-3
- Center Cutting: Yes
- Chipbreaker: No
- Country of Origin: US
- Flute Type: Spiral
- Has Attributes: Yes
- Has Image: Yes
- Length of Cut Multiple: (3x)
- Manufacturer Name: Helical Solutions
- Web Thickness: 0.01in
One of the H40ALV-3's 3 flutes contains a wiper flat, designed to swiftly remove scallop marks on the floor of a part to leave a superior finish in aluminum and non-ferrous alloys. This feature is included on all square profiles and where the tool's corner radius does not exceed 20% of the cutter diameter.
- Application
- Item Features
Finishing and Ramping Applications
- Unique 3 teeth to center end geometry for ramping applications
- Wiper flat design leaves superior floor finish
- Excellent performance in high efficiency milling (HEM)
- h6 shank tolerance for high precision tool holders
- Zplus coating for maximum performance in aluminum and non-ferrous alloys
