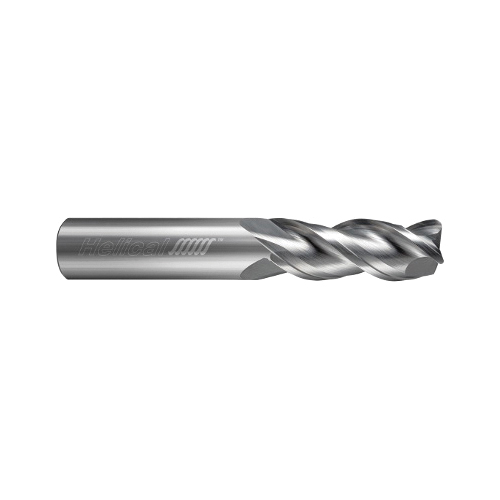

1/4 3FL 0.015CR 1INLOC END MILL
1/4 3FL 0.015CR 1INLOC END MILL
HESL48140
48140
53.50
/ EA
http://schema.org/OutOfStock
/Product/HESL48140
- Type: Center Cut Imperial Variable Pitch
- Cutter Diameter Decimal Inch: 0.25
- Cutter Diameter Fractional Inch: 1/4
- Cutter Diameter Metric: 6.35
- Corner Radius: 0.015in, 0.15 in
- Number of Flutes: 3
- Length of Cut Decimal Inch: 1
- Length of Cut Fractional Inch: 1
- Length of Cut Metric: 25.4
- Overall Length Decimal Inch: 3
- Overall Length Fractional Inch: 3
- Overall Length Metric: 76.2
- Material: Carbide
- Surface Treatment: Un, UNCOATED
- Helix Angle: 40 deg
- Shank Diameter Decimal Inch: 0.25
- Shank Diameter Fractional Inch: 1/4
- Series: H40ALV-3
- Center Cutting: Yes
- Chipbreaker: No
- Country of Origin: US
- Flute Type: Spiral
- Has Attributes: Yes
- Has Image: Yes
- Length of Cut Multiple: (4x)
- Manufacturer Name: Helical Solutions
- Web Thickness: 0.008in
One of the H40ALV-3's 3 flutes contains a wiper flat, designed to swiftly remove scallop marks on the floor of a part to leave a superior finish in aluminum and non-ferrous alloys. This feature is included on all square profiles and where the tool's corner radius does not exceed 20% of the cutter diameter.
- Application
- Item Features
Finishing and Ramping Applications
- Unique 3 teeth to center end geometry for ramping applications
- Wiper flat design leaves superior floor finish
- Excellent performance in high efficiency milling (HEM)
- h6 shank tolerance for high precision tool holders
- Uncoated tool offers an excellent option for aluminum finishing applications
