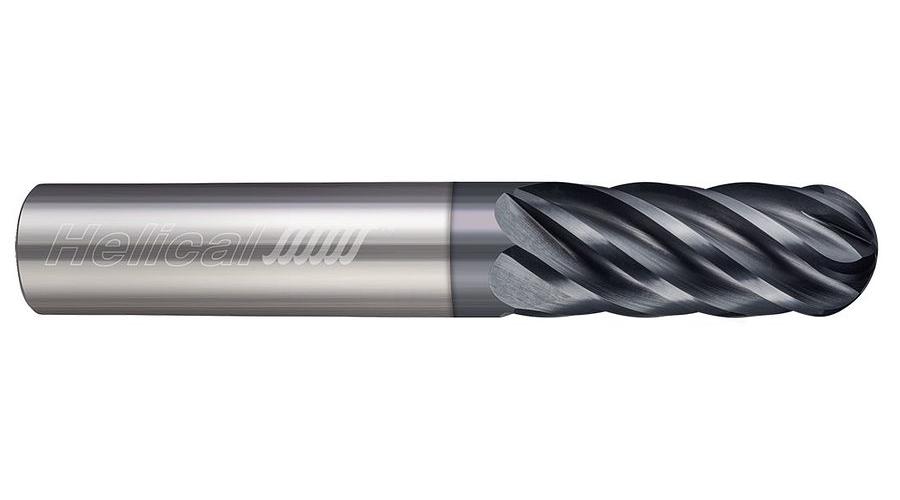

3/16 6FL APLUS 3/16SHK END MILL
3/16 6FL APLUS 3/16SHK END MILL
HESL84413
84413
37.00
/ EA
http://schema.org/OutOfStock
/Product/HESL84413
- Type: Center Cut
- Cutter Diameter Decimal Inch: 0.1875
- Cutter Diameter Fractional Inch: 3/16
- Cutter Diameter Metric: 4.762
- Number of Flutes: 6
- Length of Cut Decimal Inch: 0.75
- Length of Cut Fractional Inch: 3/4
- Length of Cut Metric: 19.05
- Overall Length Decimal Inch: 2.5
- Overall Length Fractional Inch: 2-1/2
- Overall Length Metric: 63.5
- Material: Solid Carbide
- Surface Treatment: APLUS, Aplus Coated
- Shank Diameter Decimal Inch: 0.1875
- Shank Diameter Fractional Inch: 3/16
- Shank Type: Cylindrical
- Center Cutting: Yes
- Chipbreaker: No
- Corner Radius: 0.0938in
- Country of Origin: US
- Hand Direction: Right Hand
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Name: Helical Solutions
- Weldon Flat: No
- Application
- Item Features
Light Profiling|High Efficiency Milling (HEM)
- Variable pitch geometry results in higher quality parts by decreasing chatter and harmonics
- H6 Shank Tolerance for High Precision Tool Holders
- Aplus coating offers added lubricity and high temperature resistance for faster speeds and feeds and improved tool life
- Applicable Materials are Steel, Titanium
