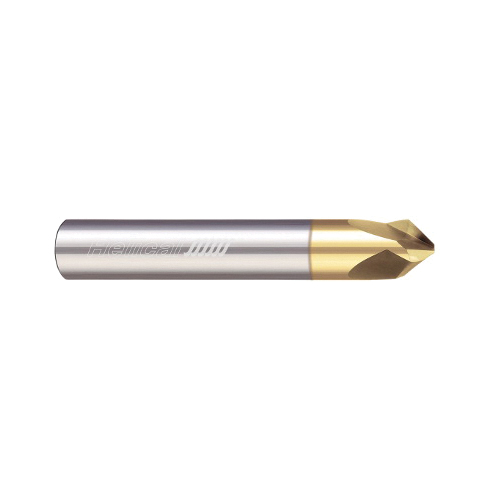

1/4 90DEG 3FL HELICAL FL CHAMFER MILL Zplus
1/4 90DEG 3FL HELICAL FL CHAMFER MILL Zplus
HESL59820
59820
31.70
/ EA
http://schema.org/OutOfStock
/Product/HESL59820
- Cutter Diameter Decimal Inch: 0.25
- Cutter Diameter Fractional Inch: 1/4
- Cutter Diameter Metric: 6.35
- Length of Cut Decimal Inch: 0.095, 0.95
- Length of Cut Metric: 2.413, 24.13
- Included Angle: 90 deg, 90°
- Number of Flutes: 3
- Material: Carbide
- Surface Treatment: Zplus Coated
- Type: High Performance Imperial
- Shank Diameter Decimal Inch: 0.25
- Shank Diameter Fractional Inch: 1/4
- Series: HPCM
- Center Cutting: No
- Chipbreaker: No
- Country of Origin: US
- End Type: Flat Tip
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Name: Helical Solutions
- Overall Length Decimal Inch: 2.5
- Overall Length Fractional Inch: 2-1/2
- Overall Length Metric: 63.5
- Tip: 0.06in
Introduced in 2016, the HPCM is a completely unique chamfer cutter design. The helical flute geometry and flat tip geometry provide significant boosts in performance over straight fluted chamfer cutters and the high flute count and Aplus coating make these tools capable of handling tough applications.
- Item Features
- 3 and 5 flute options helically ground with positive axial rake and clearance
- Helical flute geometry results in superior part finish
- Flat tip diameter for programming accuracy and increased strength
- h6 shank tolerance for high precision tool holders
- Zplus coating for maximum performance in aluminum and non-ferrous alloys
