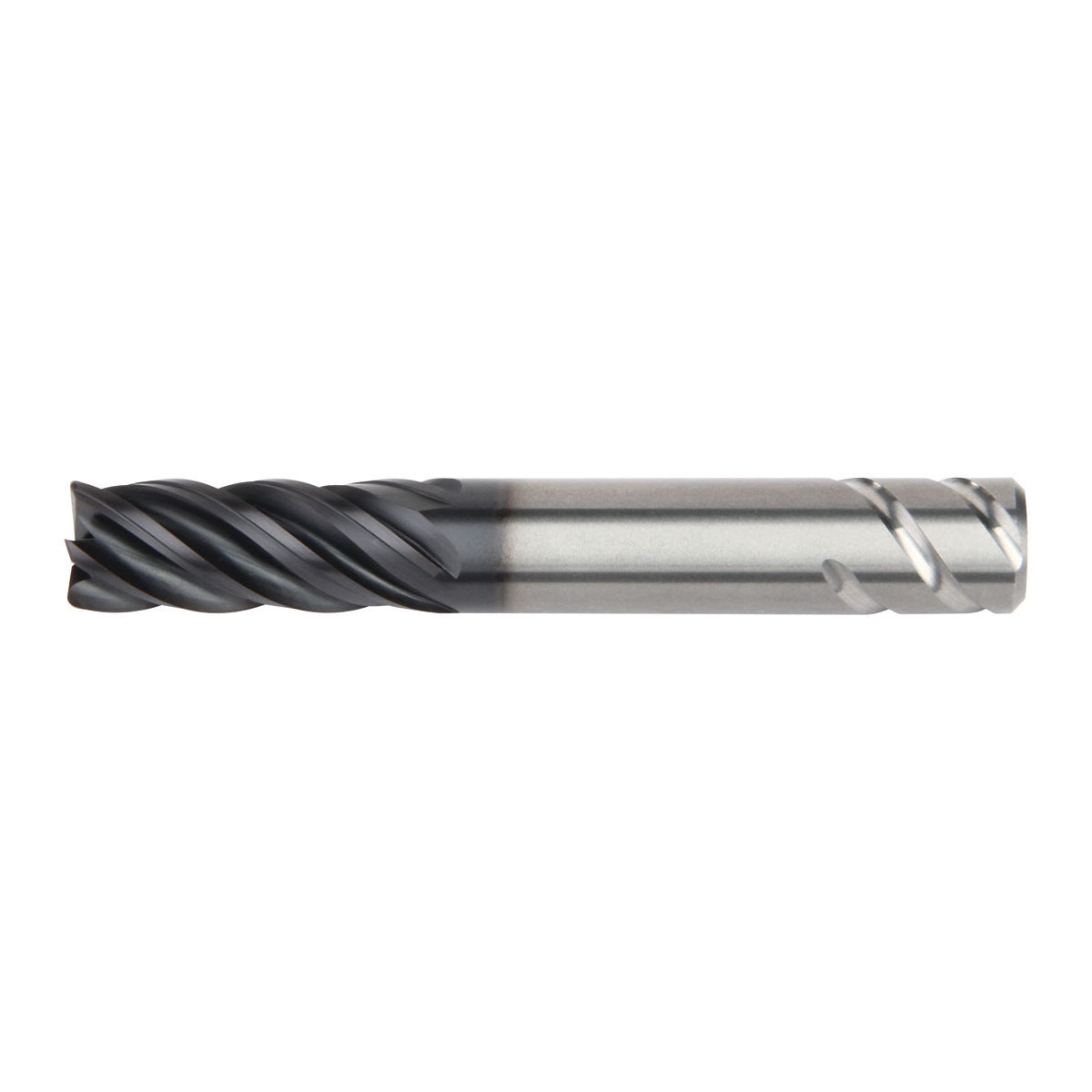

D=0.5 AP=1.625 Z=5 R=0.06 END MILL
D=0.5 AP=1.625 Z=5 R=0.06 END MILL
WIDA6146569
6146569
147.63
/ EA
http://schema.org/OutOfStock
/Product/WIDA6146569
- Corner Radius: 0.06in
- Country of Origin: IL
- Cutter Diameter Decimal Inch: 0.5
- Cutter Diameter Fractional Inch: 1/2
- Cutter Diameter Metric: 12.7
- Flute Type: Spiral
- Hand Direction: Right Hand
- Has Attributes: Yes
- Has Image: Yes
- Helix Angle: 38°
- Length of Cut Decimal Inch: 1.625
- Length of Cut Fractional Inch: 1-5/8
- Length of Cut Metric: 41.275
- Manufacturer Name: WIDIA
- Material: Solid Carbide
- Number of Flutes: 5
- Overall Length Decimal Inch: 4
- Overall Length Fractional Inch: 4
- Overall Length Metric: 101.6
- Series: VariMill II™ ER 5V0E
- Shank Diameter Decimal Inch: 0.5
- Shank Diameter Fractional Inch: 1/2
- Shank Type: Straight/Cylindrical
- Surface Treatment: AlTiN Coated
- Type: Center Cutting High Performance Single End
Engineered with eccentric relief (ER) grind at the cutting edges for greater edge strength, enabling higher metal removal rates and increased productivity. The new VariMill II™ ER is the first WIDIA HANITA off-the-shelf end mill available with Safe-Lock™ by HAIMER, providing excellent stability, eliminating end mill pullout and increasing concentric tool clamping. Though primarily designed for roughing and finishing applications in the aerospace industry, VariMill II™ ER can be used as a solution for any titanium or stainless steel application and is capable of slotting, ramping and plunging.
- Application
- Item Features
Ramping, Roughing, Finishing and Trochoidal Milling
- Unique geometry providing increased tool life and higher metal removal rates in difficult to machine workpiece materials
- Increased output due to fewer tool changes and higher metal removal rates (MRR)
- 1XD slotting capability requires less passes, increasing productivity
- Eccentric relief for edge stability and strength
- Extensive radii corner offering
- Unequal flute spacing
- Optimized geometry for titanium and stainless steel
