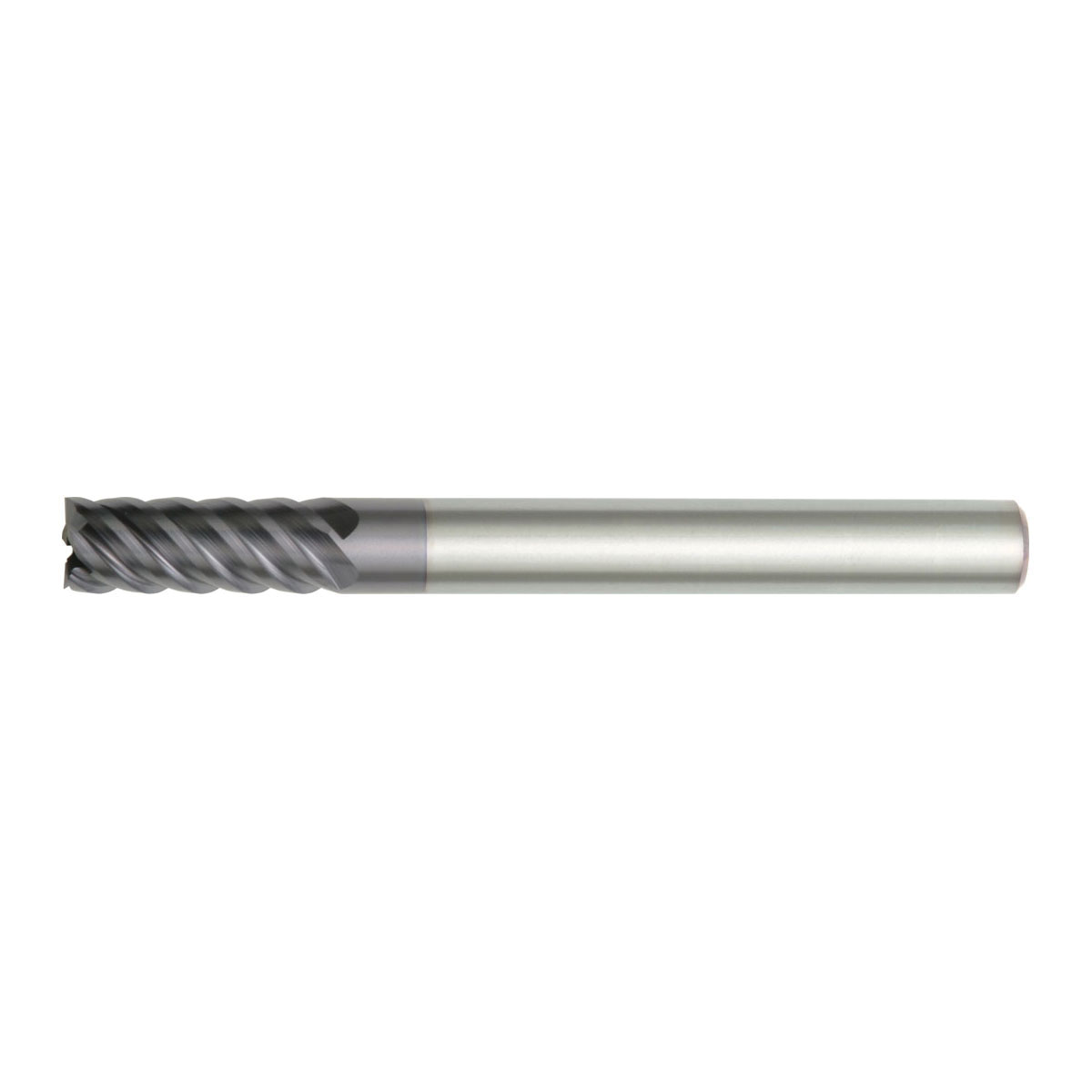

SC FIN 4FL 3x6x4.5x50 END MILL

SC FIN 4FL 3x6x4.5x50 END MILL

WIDA2499570 2499570
72.23 / EA
http://schema.org/OutOfStock
  • Type: Center Cutting High Performance Single End Square End
  • Cutter Diameter Decimal Inch: 0.118
  • Cutter Diameter Metric: 3
  • Number of Flutes: 4
  • Length of Cut Decimal Inch: 0.177
  • Length of Cut Metric: 4.5
  • Overall Length Decimal Inch: 50
  • Overall Length Metric: 1270
  • Material: Solid Carbide
  • Surface Treatment: TiAlN Coated
  • Helix Angle: 50°
  • Shank Diameter Decimal Inch: 0.236
  • Shank Diameter Metric: 6
  • Shank Type: Straight
  • Series: Vision Plus™ 7545
  • Country of Origin: IL
  • Hand Direction: Right Hand
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Name: WIDIA
Engineered to machine hardened steel up to 67 HRc at extreme speeds and feeds, Vision Plus™ solid carbide end mills are designed with a special substrate and geometries to extend tool life and lower manufacturing costs. Vision Plus™ end mills offer a complete portfolio for the die and mold industry or any application that requires machining of hardened workpiece materials. Vision Plus™ end mills will make your next application in hardened materials more productive and efficient.
QTY
  • Application
  • Item Features
Ramping, Slotting, Side Milling and Shoulder Milling
  • Long overall length for deep reach applications
  • Reinforced core for better rigidity
  • High helix for better surface finishes
