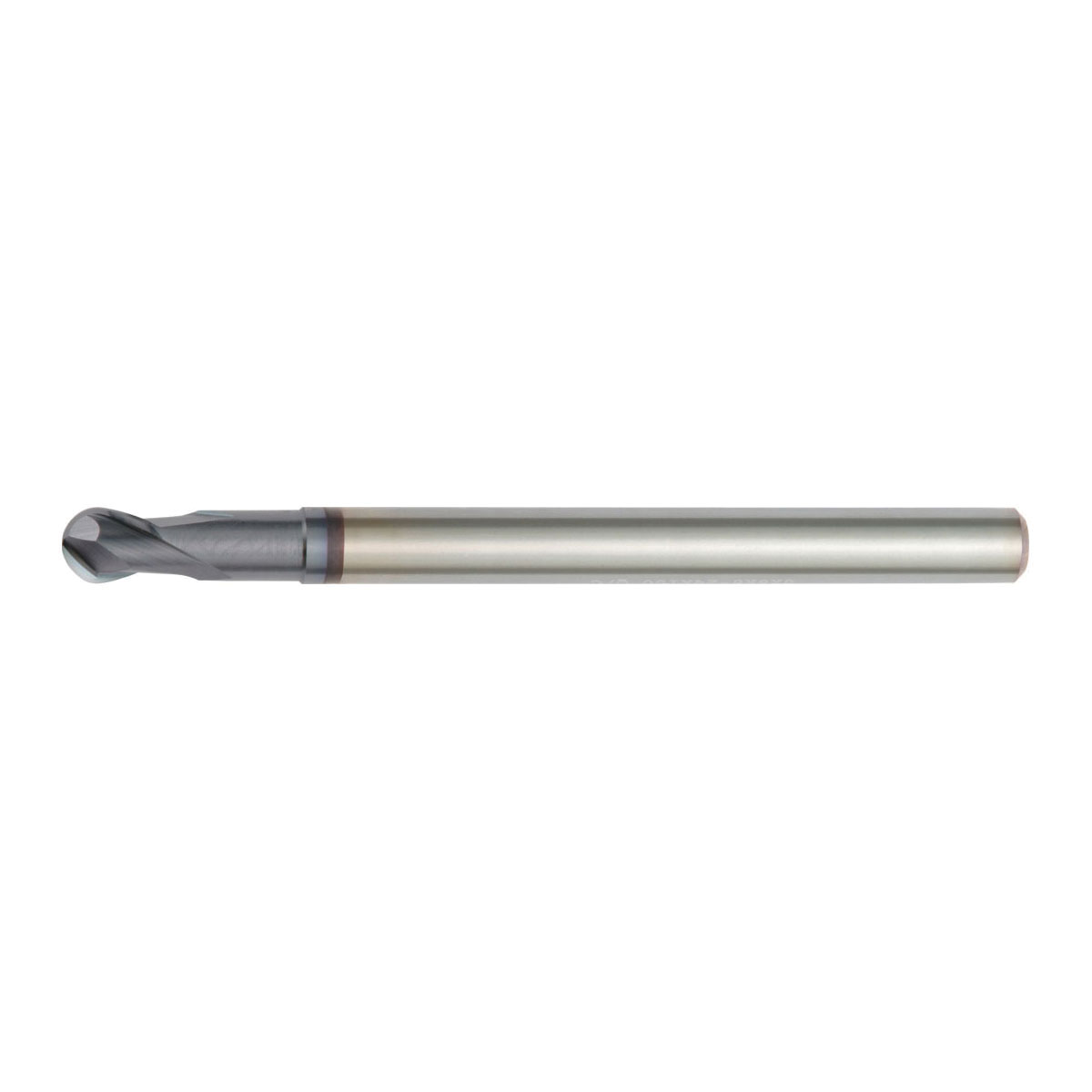

SC BALL NOSE END MILL,20DEG,Z2,02
SC BALL NOSE END MILL,20DEG,Z2,02
WIDA2343202
2343202
69.25
/ EA
http://schema.org/OutOfStock
/Product/WIDA2343202
- Type: Ball Nose Center Cutting High Performance Single End
- Cutter Diameter Decimal Inch: 0.079
- Cutter Diameter Metric: 2
- Number of Flutes: 2
- Length of Cut Decimal Inch: 0.079
- Length of Cut Metric: 2.007
- Overall Length Decimal Inch: 70
- Overall Length Metric: 1778
- Material: Solid Carbide
- Surface Treatment: AlTiN Coated
- Helix Angle: 20°
- Shank Diameter Decimal Inch: 0.236
- Shank Diameter Metric: 6
- Shank Type: Straight
- Series: Vision Plus™ 422870
- Country of Origin: DE
- Hand Direction: Right Hand
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Name: WIDIA
Engineered to machine hardened steel up to 67 HRc at extreme speeds and feeds, Vision Plus™ solid carbide end mills are designed with a special substrate and geometries to extend tool life and lower manufacturing costs. Vision Plus™ end mills offer a complete portfolio for the die and mold industry or any application that requires machining of hardened workpiece materials. Vision Plus™ end mills will make your next application in hardened materials more productive and efficient.
- Application
- Item Features
3D Profiling, Slotting, Side Milling and Shoulder Milling
- Long overall length for deep reach applications
- Reinforced core for better rigidity
- High helix for better surface finishes
- Unique design allows higher feeds and speeds, increasing metal removal rates (MRR)
- Extended neck for long reach applications
