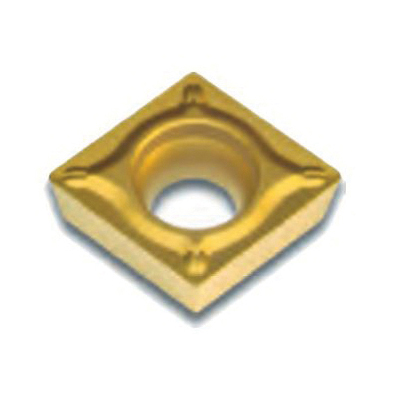

CCMT 32.52ESU AC700G INSERT
CCMT 32.52ESU AC700G INSERT
SUE19DYW29
19DYW29
9.66
/ EA
http://schema.org/OutOfStock
/Product/SUE19DYW29
- Insert Style: CCMT
- Insert Size: 32.52
- Corner Radius: 1/32 in
- Manufacturer Grade: AC700G
- Chipbreaker: ESU
- ISO Code: CCMT09T308N-SU-AC700G
- ANSI Code: CCMT32.52ESU-AC700G
- Included Angle: 80 deg
- Shape: Diamond
- Material Grade: K
- Seat Size: 9
- Surface Treatment: CVD-Super FF Coated
- Inscribed Circle: 3/8 in
- Applicable Materials: Cast Iron
- Hand Direction: Neutral
- Has Attributes: Yes
- Has Image: Yes
- Hole Diameter: 0.1732 in
- Manufacturer Name: Sumitomo Electric Industries
- Material: Carbide
- Rake: Positive
- Relief Angle: 7 deg
- Thickness: 0.156 in
- Application
- Item Features
Light Cutting Applications
- AC700G grade a new P10 grade with excellent wear resistance that features stability and longer tool life
- Utilizes a special carbide substrate with super FF coat for high to medium speed cutting
- A new, extremely versatile grade that can be used for rough, interrupted cutting of ductile and gray cast iron
- Employs special, ultra hard carbide substrate and super FF coat to provide stability and long tool life
