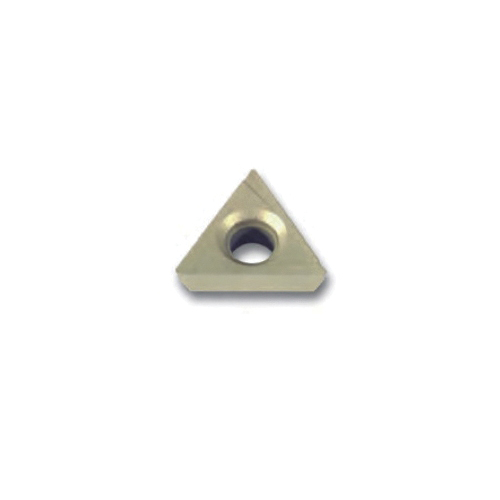

TPGT631L-AC530U CTD CARB INSERT
TPGT631L-AC530U CTD CARB INSERT
SUE10HM792
10HM792
12.71
/ EA
http://schema.org/OutOfStock
/Product/SUE10HM792
- ANSI Code: TPGT631L-AC530U
- Applicable Materials: Stainless Steel
- Chipbreaker: W
- Corner Radius: 1/64 in
- Country of Origin: JP
- Hand Direction: Left Hand
- Has Attributes: Yes
- Has Image: Yes
- Hole Diameter: 0.09 in
- Included Angle: 60 deg
- Inscribed Circle: 3/16 in
- Insert Size: 631
- Insert Style: TPGT
- ISO Code: TPGT080204L-W-AC530U
- Manufacturer Grade: AC530U
- Manufacturer Name: Sumitomo Electric Industries
- Material: Carbide
- Material Grade: M
- Rake: Positive
- Relief Angle: 11 deg
- Seat Size: 8
- Shape: Triangular
- Surface Treatment: PVD-Super ZX Coated
- Thickness: 0.094 in
- Application
- Item Features
Finishing to Light Applications
- AC530U grade for interrupted and general steel cutting
- Utilizing the new super multi-layered PVD coating of nanometer thick TiAlN and AlCrN layers, coupled with a fine grained super tough substrate for excellent fracture resistance
