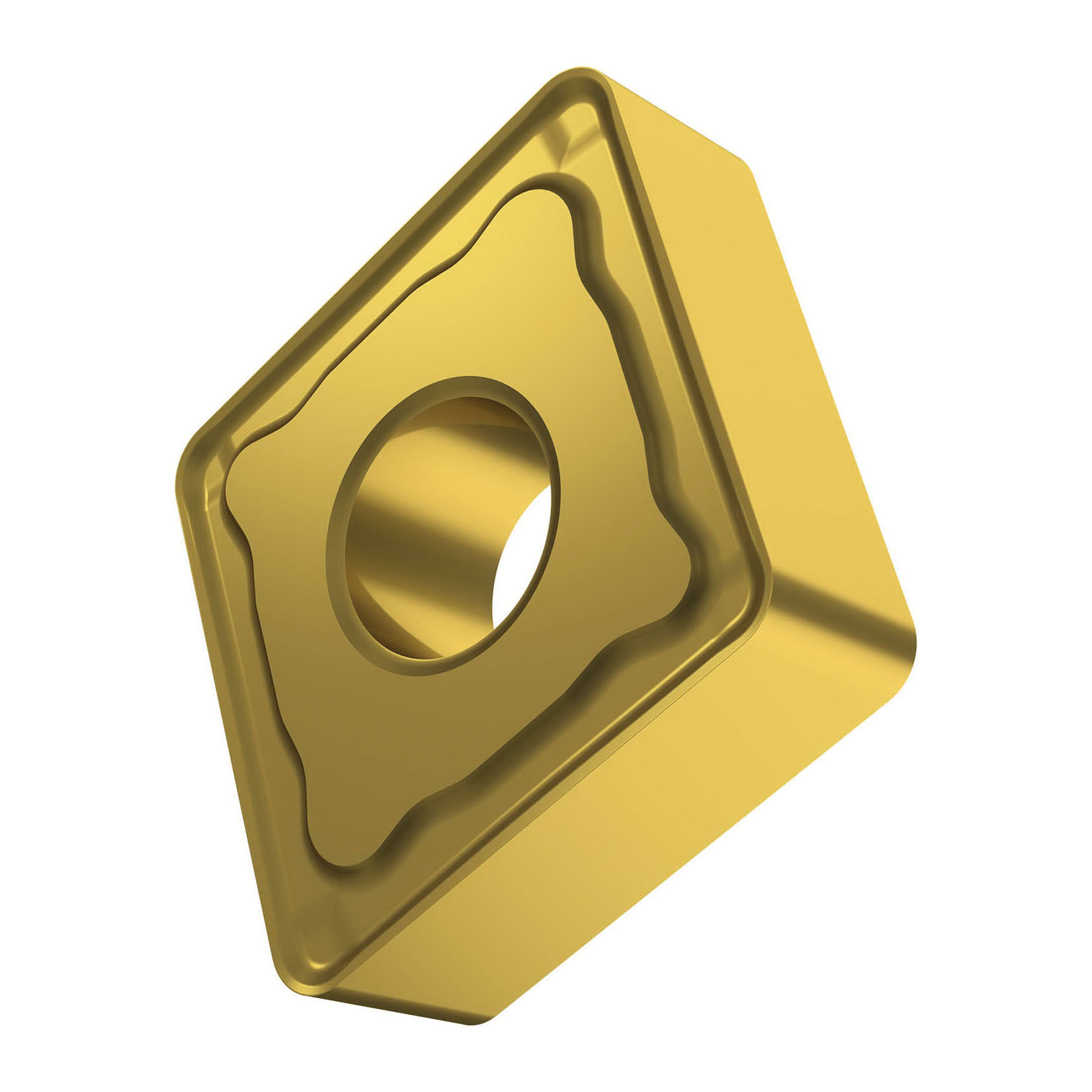

CNMG 120408E-NM:T8430 INSERT
CNMG 120408E-NM:T8430 INSERT
PRA7977107
7977107
9.95
/ EA
http://schema.org/OutOfStock
/Product/PRA7977107
- Applicable Materials: Cast Steel, High Temperature Alloys, Non-Ferrous Metals, Stainless Steel and Steel
- Chipbreaker: NM
- Corner Radius: 0.031in
- Hand Direction: Neutral
- Hole Diameter: 0.203in
- Included Angle: 80°
- Inscribed Circle: 1/2in
- Insert Size: 120408
- Insert Style: CNMG
- ISO Code: CNMG 120408E-NM:T8430
- Material: Carbide
- Material Grade: M, N, P, S
- Maximum Depth of Cut Decimal Inch: 0.067, 0.083
- Maximum Depth of Cut Fractional Inch: ,
- Maximum Depth of Cut Metric: 1.7, 2.1
- Rake: Negative
- Relief Angle: 0°
- Seat Size: 12
- Shape: Diamond
- Surface Treatment: PVD Coated
- Thickness: 0.187in
- Type: 0.508in, Indexable
- Manufacturer Grade: T8430
- ANSI Code: CNMG 432-NM:T8430
- Country of Origin: CZ
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Name: Dormer Pramet
- Series: CNMG
