DCMT 32.52-FM2:T9325 TURNING INSERT - POSITIVE

DCMT 32.52-FM2:T9325 TURNING INSERT - POSITIVE

PRA7156895 7156895
9.06 / EA
http://schema.org/OutOfStock
  • Applicable Materials: Cast Iron, Stainless Steel, Steel and Titanium/Super Alloys
  • Chipbreaker: FM2
  • Corner Radius: 0.8mm
  • Hole Diameter: 4.5mm
  • Included Angle: 55°
  • Inscribed Circle: 9.525mm
  • Insert Size: 32.52
  • Insert Style: DCMT
  • ISO Code: DCMT 11T308E-FM2 T9325
  • Material: Carbide
  • Material Grade: K, M, P, S
  • Maximum Depth of Cut: 2.8mm
  • Rake: Positive
  • Relief Angle:
  • Seat Size: 11
  • Shape: Diamond
  • Surface Treatment: CVD Coated
  • Thickness: 3.97mm
  • Type: 11.6mm
  • Manufacturer Grade: T9325
  • ANSI Code: DCMT 32.52-FM2 T9325
  • Country of Origin: CZ
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Name: Dormer Pramet

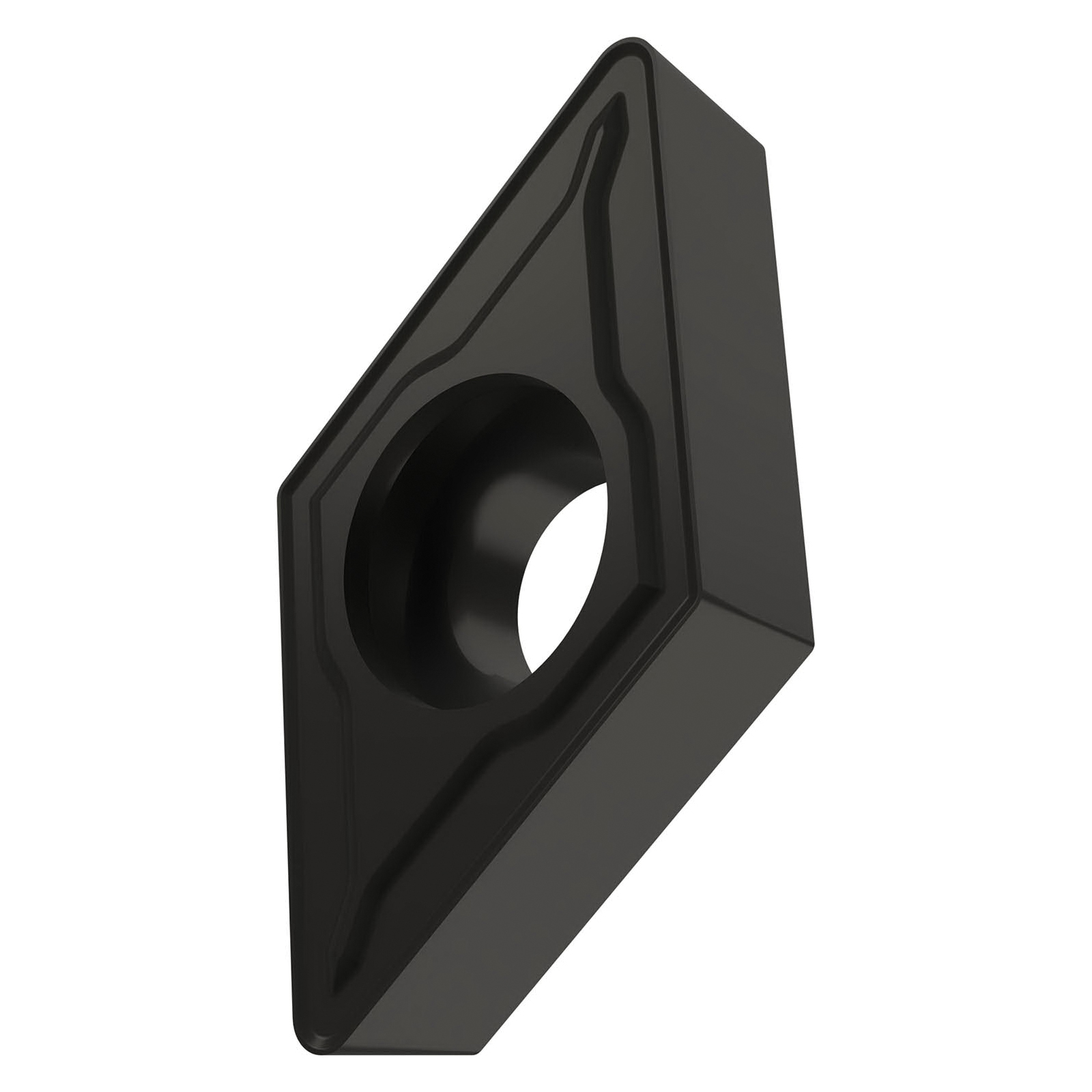

Single-sided positive turning insert, 55° rhomboid with 7° clearance, inscribed circle diameter of 9.525mm, 3.97mm thick, 0.8mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker FM2 with rounded cutting edges, in grade T9325, a MT-CVD coated functionally graded WC-Co carbide within ISO range P15-P35, for fine to medium machining of steels
Pack: 10/PK
QTY
  • Application
  • Item Features
  • Standards
Finishing, Semi-Roughing and Drilling
  • T9325 grade functionally gradient substrate
  • Relatively low content of cobalt binder phase
  • Highly versatile material with very good operational reliability
  • Special surface finish for coating
  • Medium and higher cutting speed
  • Continuous and interrupted cut
  • Unfavorable cutting conditions, continuous and/or interrupted cuts
  • Cutting geometry suitable for grooving and axial turning
