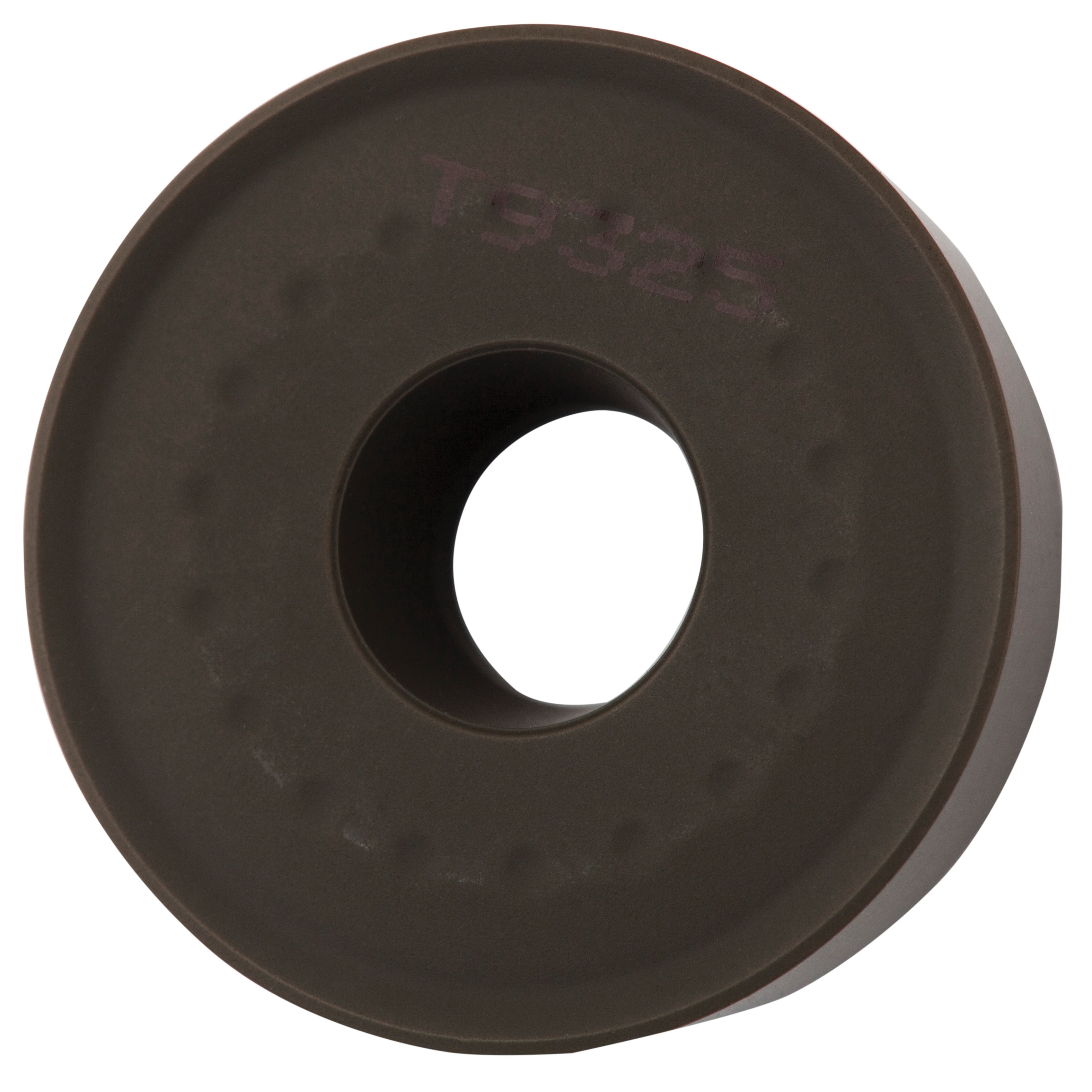

RCMX 3209MO-RM2:T9310 TURNING INSERT - NEGATIVE
RCMX 3209MO-RM2:T9310 TURNING INSERT - NEGATIVE
PRA6755595
6755595
318.82
/ PK (5)
http://schema.org/OutOfStock
/Product/PRA6755595
- Applicable Materials: Hardened Steel, Cast Iron and Steel
- Chipbreaker: RM2
- Hole Diameter: 9.5mm
- Inscribed Circle: 32mm
- Insert Size: 3209MO
- Insert Style: RCMX
- ISO Code: RCMX 3209MO-RM2 T9310
- Material: Carbide
- Material Grade: H, K, P
- Maximum Depth of Cut Decimal Inch: 0.315
- Maximum Depth of Cut Metric: 8.0
- Rake: Positive
- Relief Angle: 7°
- Seat Size: 32
- Shape: Round
- Surface Treatment: CVD Coated
- Thickness: 9.52mm
- Country of Origin: CZ
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Grade: T9310
- Manufacturer Name: Dormer Pramet
Special design positive turning insert, round with 7° clearance, a diameter of 32mm, 9.52mm thick, indexing accuracy according to ISO-tolerance class-M, chip-breaker RM2, in grade T9310, a MT-CVD coated functionally graded WC-Co carbide within ISO range P01-P15, for heavy to medium machining of steels
- Application
- Item Features
- Standards
Semi-Roughing to Roughing Applications
- T9310 grade fine grained, functionally gradient substrate
- Low cobalt content
- Thick MT-CVD coating with a special Al2O3 layer
- Exceptional thermal and chemical stability ensures excellent protection of the bearing material
- Special surface finish for coating
- High cutting speeds
- Continuous to slightly interrupted cut
