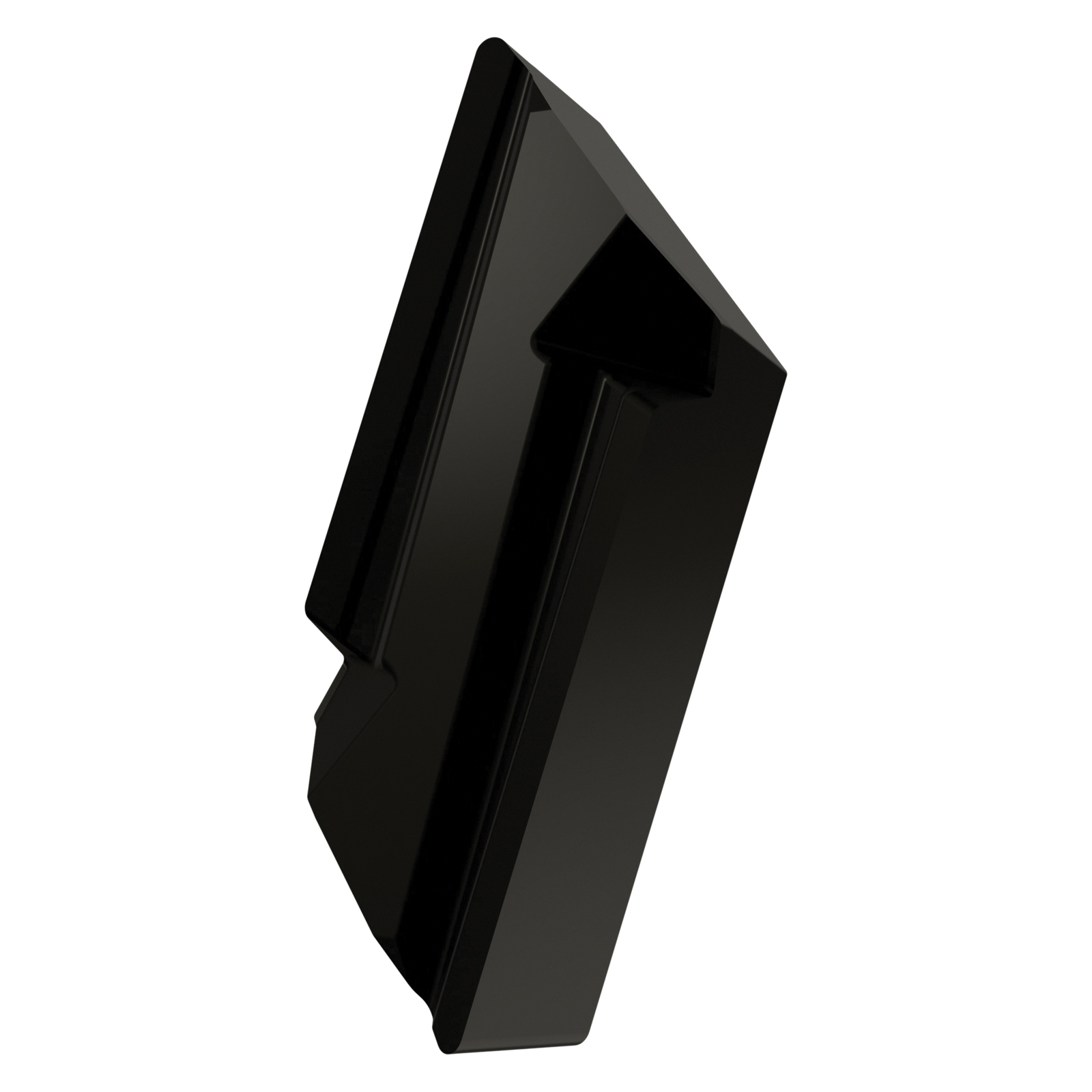

KNUX 160405ER-72:T9335 TURNING INSERT - NEGATIVE
KNUX 160405ER-72:T9335 TURNING INSERT - NEGATIVE
PRA6754914
6754914
127.15
/ PK (10)
http://schema.org/OutOfStock
/Product/PRA6754914
- Applicable Materials: Stainless Steel, Steel and Titanium/Super Alloys
- Chipbreaker: 72
- Corner Radius: 0.5mm
- Included Angle: 55°
- Inscribed Circle: 9.525mm
- Insert Size: 160405
- Insert Style: KNUX
- ISO Code: KNUX 160405ER-72 T9335
- Material: Carbide
- Material Grade: M, P, S
- Maximum Depth of Cut Decimal Inch: 0.157
- Maximum Depth of Cut Metric: 4.0
- Rake: Negative
- Relief Angle: 0°
- Seat Size: 16
- Shape: Parallelogram
- Surface Treatment: CVD Coated
- Thickness: 4.76mm
- Type: 19.5mm
- Manufacturer Grade: T9335
- Has Attributes: Yes
- Has Image: Yes
Special design negative turning insert, 55° parallelogram with a main edge length of 16mm, 4.76mm thick, 0.5mm nose radius, indexing accuracy according to ISO-tolerance class-U, chip-breaker 72 with rounded cutting edges, in grade T9335, a MT-CVD coated functionally graded WC-Co carbide within ISO range P20-P45, for fine to medium machining of steels with a right handed turning tool
- Item Features
- Standards
- T9335 grade functionally gradient substrate with medium grain size
- Relatively high cobalt content
- MT-CVD coating of medium thickness
- Material shows very high strength
- Special surface finish for coating
- Designed for machining material groups P, M and S
- Medium cutting speeds
- Continuous and heavily interrupted cut
- Also withstands very unfavorable machining conditions
