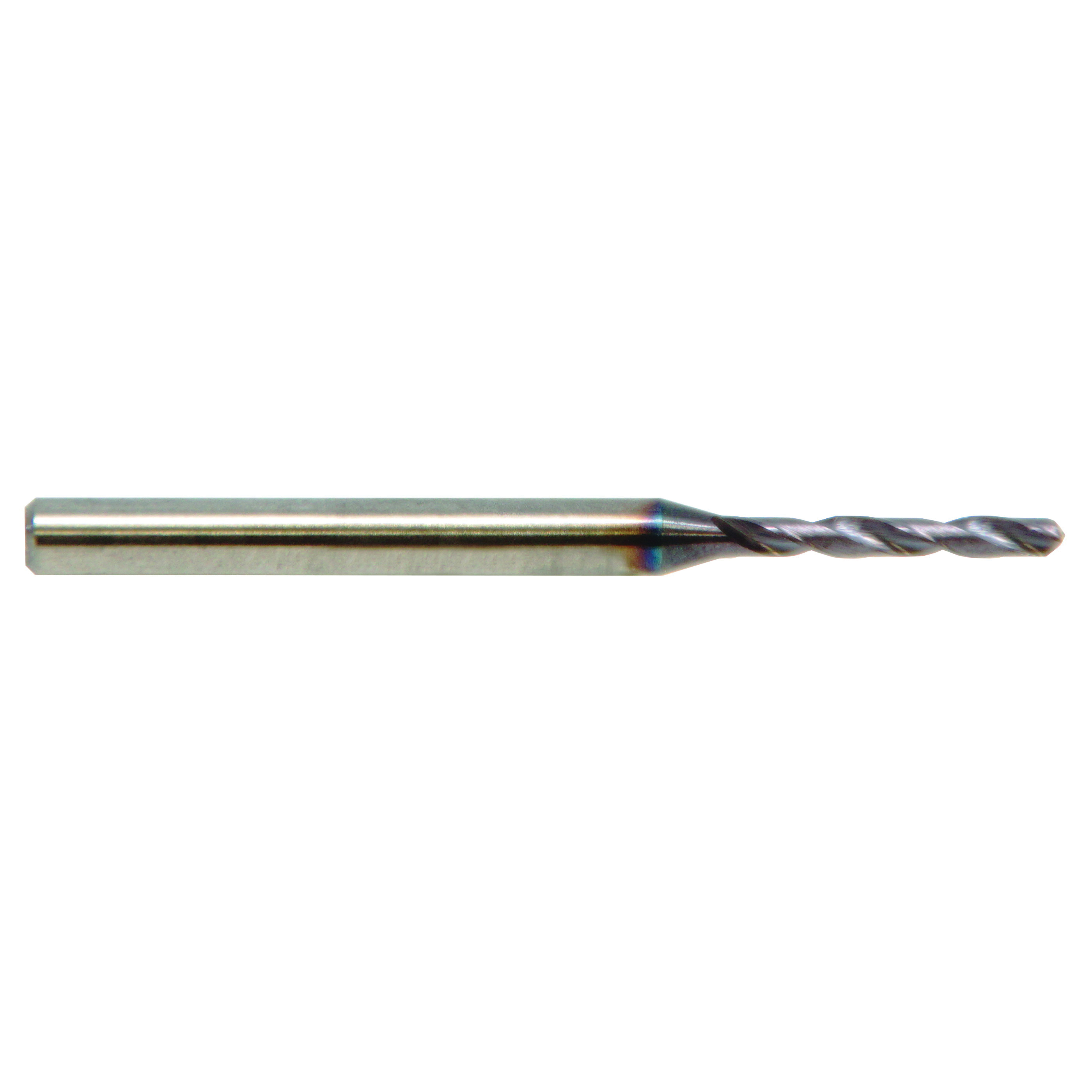

MXDCRM 1.35MM 10MM LOC COOL FED CARB DRILL
MXDCRM 1.35MM 10MM LOC COOL FED CARB DRILL
MAFMXDCRM0135A
MXDCRM0135A
154.28
/ EA
http://schema.org/OutOfStock
/Product/MAFMXDCRM0135A
- Applicable Materials: Cast Iron, Special Alloy, Stainless Steel and Steel
- Drill Size - Decimal Inch: 0.0531 in
- Drill Size - Metric: 1.35 mm
- Drill Size Metric: 1.349, 1.35
- Flute Length: 10 mm
- Flute Length Decimal Inch: 0.394
- Flute Length Metric: 10
- Material: Solid Carbide
- Number of Flutes: 2
- Overall Length: 57 mm
- Overall Length Decimal Inch: 57
- Overall Length Metric: 1447.8
- Series: MXDCR
- Shank Size: 3 mm Dia
- Shank Type: Straight
- Country of Origin: US
- Cutting Depth: 5X
- Cutting Direction: Right Hand
- Cutting Edge Material: Solid Carbide
- Drill Diameter Measurement System: Metric
- Drill Size Decimal Inch: 0.053, 0.0531
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Name: M.A. Ford
- Point Angle: 138 deg
- Item Features
- Designed for high performance drilling in a broad range of materials
- The web thinned point helps to reduce cutting forces during the drilling operation
- All sizes have honed cutting edges on the point which increases the strength of the cutting edges
- Post coat polishing to improve chip evacuation
- Single margin
