SER CXDCS 23/64" 3X CYCLONE STUB CARB DRILL

SER CXDCS 23/64" 3X CYCLONE STUB CARB DRILL

MAFCXDCS3594AP CXDCS3594AP
184.46 / EA
http://schema.org/OutOfStock

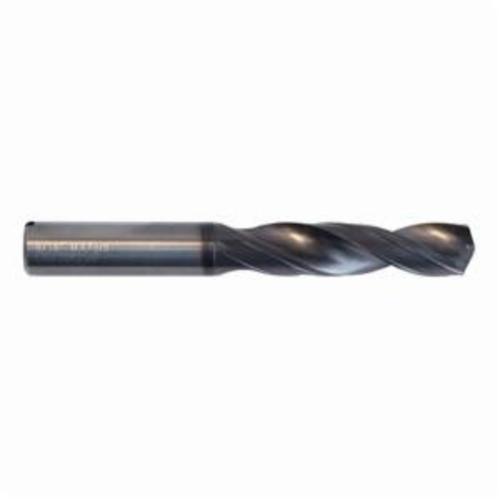

23/64 CYCLONE XD COOLANT STUB HP DRILL
  • Cutting Depth: 3XD
  • Drill Size - Decimal Inch: 0.3594 in
  • Drill Size - Fraction: 23/64 in
  • Drill Size Fractional Inch: 23/64
  • Drill Size Metric: 9.128, 9.129
  • Flute Length: 1.85 in
  • Flute Length Decimal Inch: 1.85
  • Flute Length Metric: 46.99
  • Flute Type: Spiral
  • Material: Carbide
  • Number of Flutes: 2
  • Overall Length: 3.504 in
  • Overall Length Decimal Inch: 3.504
  • Overall Length Metric: 89.002
  • Point Type: Lower Thrust
  • Series: CXDCS
  • Shank Size: 3/8 in
  • Shank Type: Round
  • Type: High Performance
  • Applicable Materials: Steel, Cast Iron, Stainless Steel and Special Alloy
  • Country of Origin: US
  • Cutting Direction: Right Hand
  • Cutting Edge Material: Carbide
  • Drill Diameter Measurement System: Imperial
  • Drill Size Decimal Inch: 0.359375, 0.3594
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Name: M.A. Ford
  • Point Angle: 140/142 deg
QTY
Add to List
  • Item Features
  • Standards
  • Designed for high performance drilling in a broad range of materials
  • Lower thrust point geometry
  • Enhanced double margin design
  • ALtima® Plus AlTiN multi-layer coating
  • Enhanced surface finish technology pre and post coating
  • Back margin location allows for quicker engagement in hole
  • Improved hole finishes
  • Improved location when drilling through cross holes
  • Higher heat resistance means higher RPM capabilities
  • Optimized coating structure lengthens drill life and reduces chipping and wear
ISO 9001:2008
