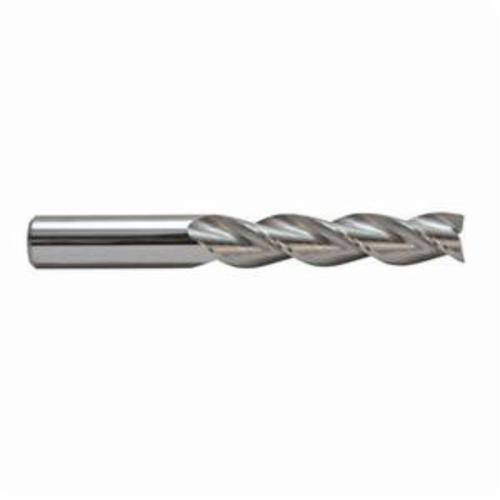

SER 138 5/16" 3FL TUFFCUT X-AL CARB END MILL
SER 138 5/16" 3FL TUFFCUT X-AL CARB END MILL
MAF13831259NR.015
13831259NR.015
75.58
/ EA
http://schema.org/OutOfStock
/Product/MAF13831259NR-015
- Type: Center Cutting Square End
- Cutter Diameter Decimal Inch: 0.3125
- Cutter Diameter Fractional Inch: 5/16
- Cutter Diameter Metric: 7.938
- Number of Flutes: 3
- Length of Cut: 7/16 in
- Length of Cut Decimal Inch: 0.4375
- Length of Cut Fractional Inch: 7/16
- Length of Cut Metric: 11.112
- Overall Length: 4 in
- Overall Length Decimal Inch: 4
- Overall Length Fractional Inch: 4
- Overall Length Metric: 101.6
- Material: Carbide
- Helix Angle: 36 deg
- Shank Diameter: 5/16 in
- Shank Diameter Decimal Inch: 0.3125
- Shank Diameter Fractional Inch: 5/16
- Series: 138NR
- Country of Origin: US
- Cutter Diameter: 5/16 in
- Cutting Direction: Right Hand
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Name: M.A. Ford
M.A. Ford® TuffCut® End Mills perform better and last significantly longer than competitive products, minimizing process downtime and maximizing productivity and cost efficiency. Included in our product line are high performance end mills developed for specific applications such as stainless steels and high temperature alloys, hardened steel, titanium, composite material, aluminum and softer alloys.
- Application
- Item Features
- Standards
High Performance
- Aluminum milling to the extreme with chip loads and speeds, definitely designed for extreme productivity
- For extreme high speed machining of aluminum and non-ferrous metals
- Whisper blend transition between OD and neck
- Reduced vibration harmonics
- Improved part finishes
- Maintains cutting edge strength and sharpness for improved tool life
- Slotting at 1X Dia deep
- 1-1/8 in L neck
- 0.015 in corner radius
- +0.0008/-0.0008 in tolerance D1
ISO 9001:2008
