VCMT 221HQ TN60 INSERT
VCMT 221HQ TN60 INSERT
KYOCTSJ63072
TSJ63072
13.24
/ EA
http://schema.org/OutOfStock
/Product/KYOCTSJ63072
- Applicable Materials: Carbon/Alloy Steel
- Chipbreaker: HQ
- Corner Radius: 1/64in
- Hand Direction: Neutral
- Hole Diameter: 0.1102in

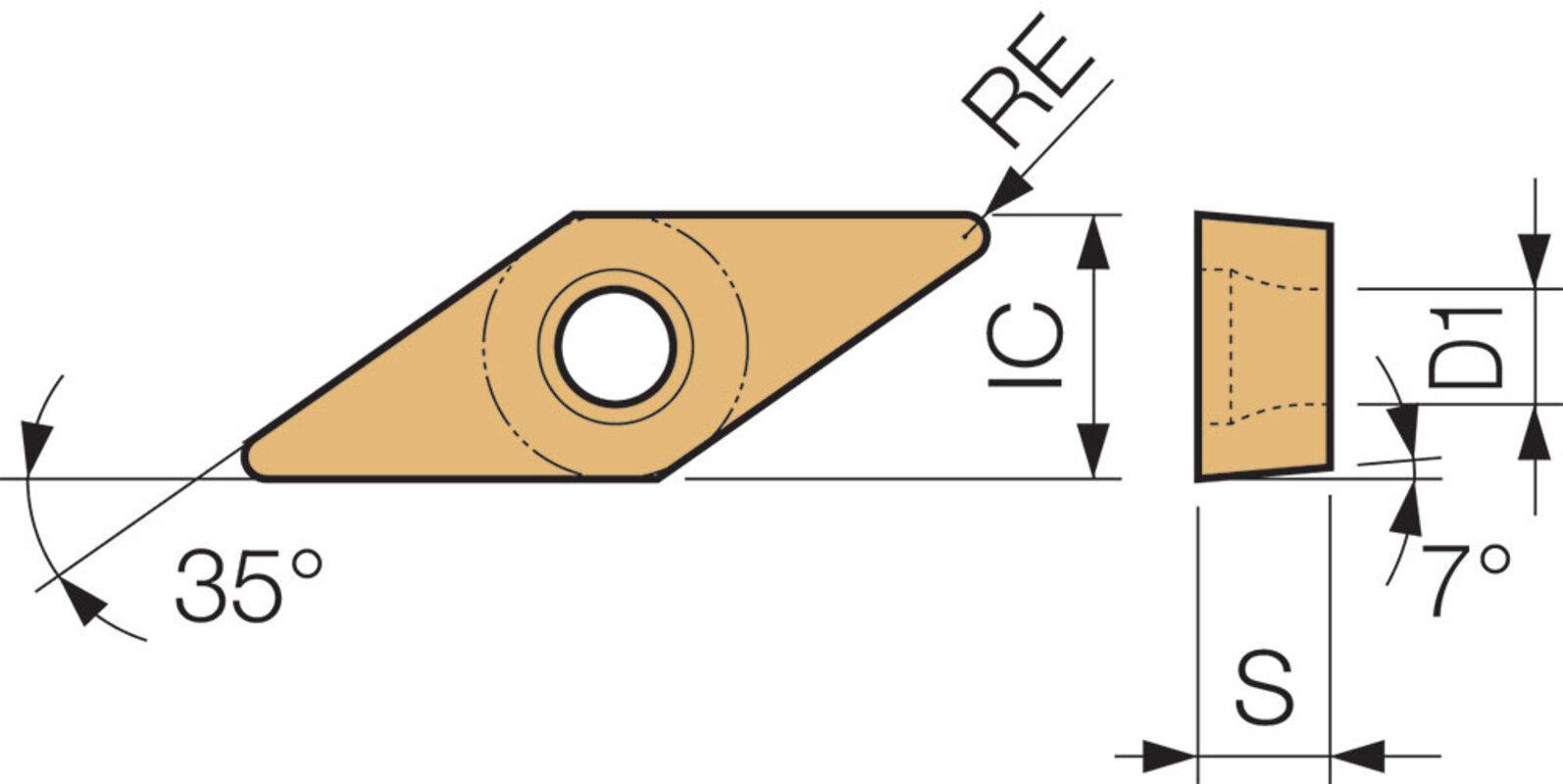

- Included Angle: 35°
- Inscribed Circle: 1/4in
- Insert Size: #221
- Insert Style: VCMT
- ISO Code: VCMT110304HQ
- Material: Cermet
- Material Grade: P
- Rake: Positive
- Relief Angle: 7°
- Seat Size: 11
- Shape: Rhombic
- Surface Treatment: Uncoated/TiCN/NbC Coated
- Thickness: 1/8in
- Type: 2-Cutting Edge
- Manufacturer Grade: TN60
- ANSI Code: VCMT221HQTN60
- Country of Origin: US|JP|CN|KR
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Name: KYOCERA Precision Tools
- Application
- Item Features
- Standards
External Turning, Copying, Facing, Undercutting, Profiling, Internal Facing and Back Boring Applications
- General purpose cermet with superior wear resistance and toughness
- General purpose chipbreaker for medium machining
- Cutting of steel and stainless steel
ECCN: EAR99
