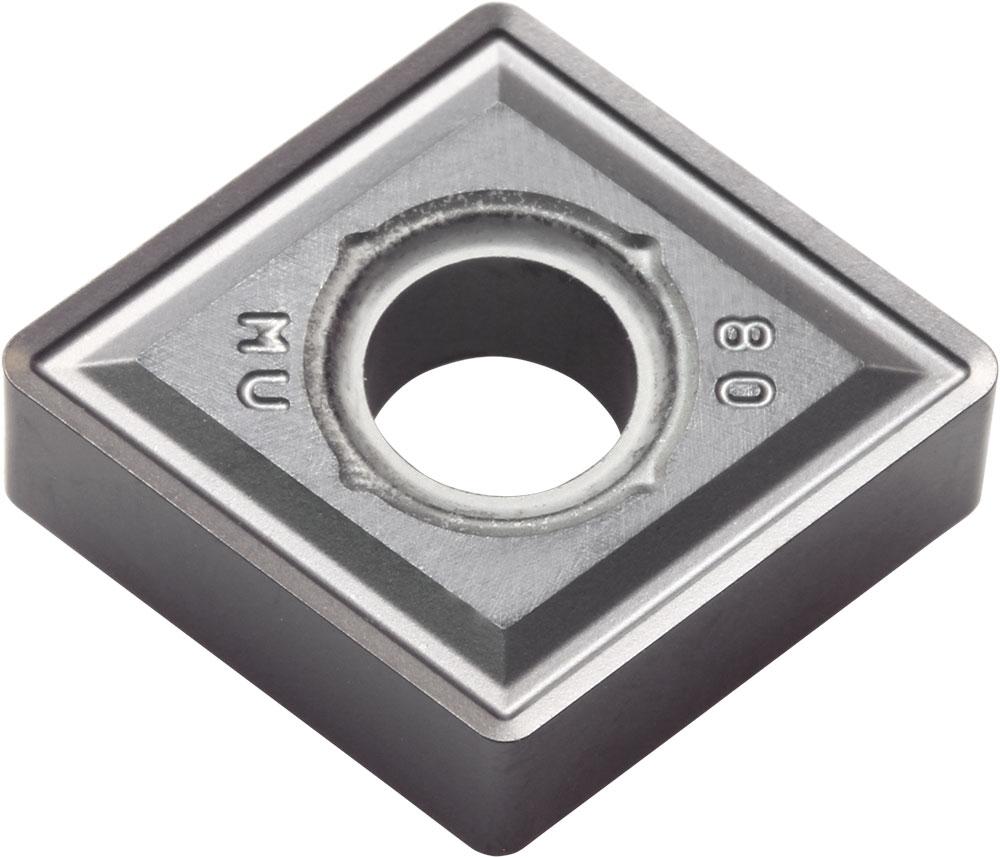

CNMG 643MU PR115S TURNING INSERT
CNMG 643MU PR115S TURNING INSERT
KYOCTLV00026
TLV00026
20.33
/ EA
http://schema.org/OutOfStock
/Product/KYOCTLV00026
- Applicable Materials: Heat-Resistant Alloy
- Chipbreaker: MU
- Corner Radius: 3/64 in
- Hand Direction: Neutral
- Hole Diameter: 0.313 in
- Included Angle: 80 deg
- Inscribed Circle: 3/4 in
- Insert Size: 643
- Insert Style: CNMG
- ISO Code: CNMG190612MU
- Material: Carbide
- Material Grade: S
- Rake: Negative
- Relief Angle: 0 deg
- Shape: Diamond
- Surface Treatment: PVD
- Thickness: 1/4 in
- Type: 4-Cutting Edge
- ANSI Code: CNMG643MUPR115S
- Country of Origin: US|JP|CN|KR
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Grade: PR115S
- Manufacturer Name: KYOCERA Precision Tools
- Series: ISOI
- Application
- Item Features
- Standards
For Boring, External Turning, Facing, Internal Facing
- Insert for External Turning, Facing, Boring, Internal Facing
- Stainless Steel/HRSA with 4 Cutting Edges
- Improved thermal conductivity by optimum distribution of WC coarse grains in the substrate
- Resists heat concentration at the cutting edge to promote stable machining
ANSI
