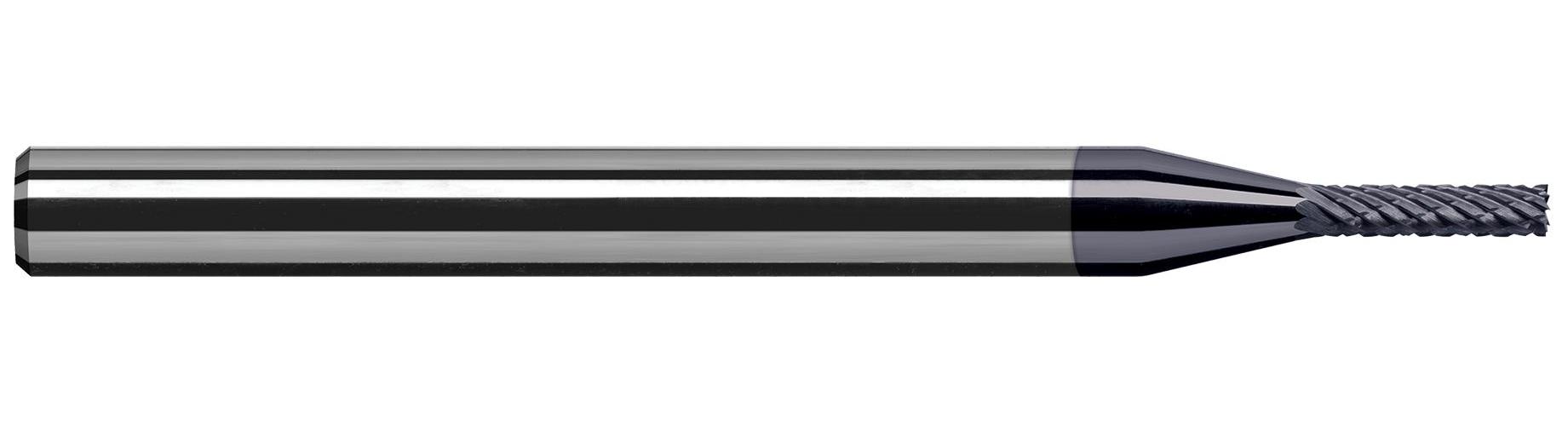

3/64" 3X MINI CARBIDE DEBURRING END MILL
3/64" 3X MINI CARBIDE DEBURRING END MILL
HATL60747-C3
60747-C3
46.10
/ EA
http://schema.org/OutOfStock
/Product/HATL60747-C3
- Type: Deburring
- Cutter Diameter Decimal Inch: 0.047
- Cutter Diameter Fractional Inch: 3/64
- Cutter Diameter Metric: 1.194
- Length of Cut Decimal Inch: 0.141
- Length of Cut Fractional Inch: 9/64
- Length of Cut Metric: 3.581
- Overall Length Decimal Inch: 2.5
- Overall Length Fractional Inch: 2-1/2
- Overall Length Metric: 63.5
- Material: Solid Carbide
- Surface Treatment: AlTiN, C3
- Helix Angle: 30 deg
- Shank Diameter Decimal Inch: 0.125
- Shank Diameter Fractional Inch: 1/8
- Shank Type: Cylindrical
- Country of Origin: US
- Flute Type: Helical
- Hand Direction: Right Hand/Left Hand
- Has Attributes: Yes
- Has Image: Yes
- Left Hand Teeth: 4
- Manufacturer Name: Harvey Tool
- Right Hand Teeth: 8
- Application
- Item Features
- Standards
Allows for increased feeds which reduces cycle times
- Deburr in your CNC machine with these high-precision burs held to end mill tolerances
- Stop scrapping expensive parts due to handheld operator errors
- High flute count allows for increased feeds which reduces cycle times
- Achieve better finish than with milling type cutters
- Bur geometry is optimized for removing burrs and/or adding a small controlled edge break with superior finish
- Double cut style flute pattern
- Applicable Materials are Non-Ferrous Metal, Cast Iron, Steel, Stainless Steel, Composites
- Left Hand Teeth 4
- Right Hand Teeth 8
- Profile Square
PROP65: This product contains chemicals known to the State of California to cause cancer
