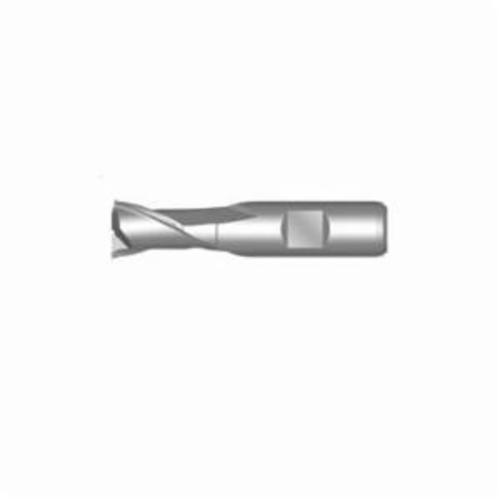

11/16 C110 HSS-E PM SLOT DRILL BRT
11/16 C110 HSS-E PM SLOT DRILL BRT
DOR5983808
5983808
68.69
/ EA
http://schema.org/OutOfStock
/Product/DOR5983808
- Cutter Diameter Inch: 11/16in
- Type: Type N Center Cutting Extra Short Length Regular Helix Square End
- Number of Flutes: 2
- Length of Cut: 19mm
- Overall Length: 79mm
- Material: HSS-E
- Surface Treatment: Bright
- Helix Angle: 30°
- Shank Diameter: 16mm
- Shank Type: WELDON FLAT
- Series: C110
- Flute Type: Spiral
- Has Attributes: Yes
- Has Image: Yes
- Application
- Item Features
- Standards
For Shank Cutter Slotting, Ramping, Diving
- Powdered metal (PM) is tougher and more cost effective than solid carbide
- It is commonly used on highly abrasive materials including high silicon aluminums
- Uncoated tools do not feature supportive treatments on the cutting edge
- They are used at reduced speeds for general applications on nonferrous metals
- Powdered metal, P9 slotting tolerance
- Applicable materials are steel, cast iron, titanium, copper, aluminium, magnesium
- 12 deg of rake
- 20 lifecycle
- 15.5 mm neck diameter
- 30.5 mm Neck length
- E8 Mill dia tolerance
DIN 1835B|PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov
