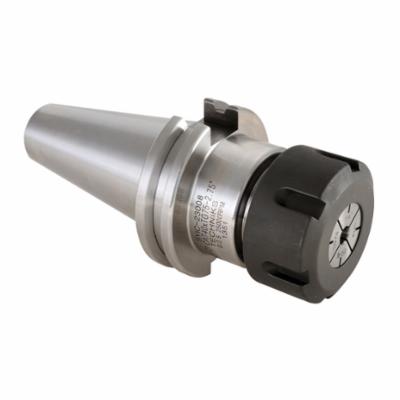

CAT40 TG75 2.75"GL COLLET CHUCK
CAT40 TG75 2.75"GL COLLET CHUCK
TEC23008
23008
218.47
/ EA
http://schema.org/OutOfStock
/Product/TEC23008
- Chuck Size: TG75
- Collet Nut Diameter: 1.88in
- Collet System: TG75
- Head Length/Projection: 2-3/4in
- Nose Diameter: 1.969in
- Overall Length Decimal Inch: 5.44
- Overall Length Metric: 138.176
- Shank Type: Tapered
- Taper Size: CAT40
- Through Coolant (Yes/No): Yes
- Type: Single End V-Flange
- Country of Origin: TW
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Name: TECHNIKS INDUSTRIES
- Includes
- Item Features
PowerCOAT Nut
- Collet chucks are balanced to 25000 rpm at G2.5 tolerance
- They are individually lab tested for accuracy and balance and come with their individual performance report
- Holders achieve 0.0001 in or less T.I.R as measured from the taper to the collet pocket
- Taper is ground to AT3 accuracy or better
- PowerCOAT nut included for 75% more clamping power
