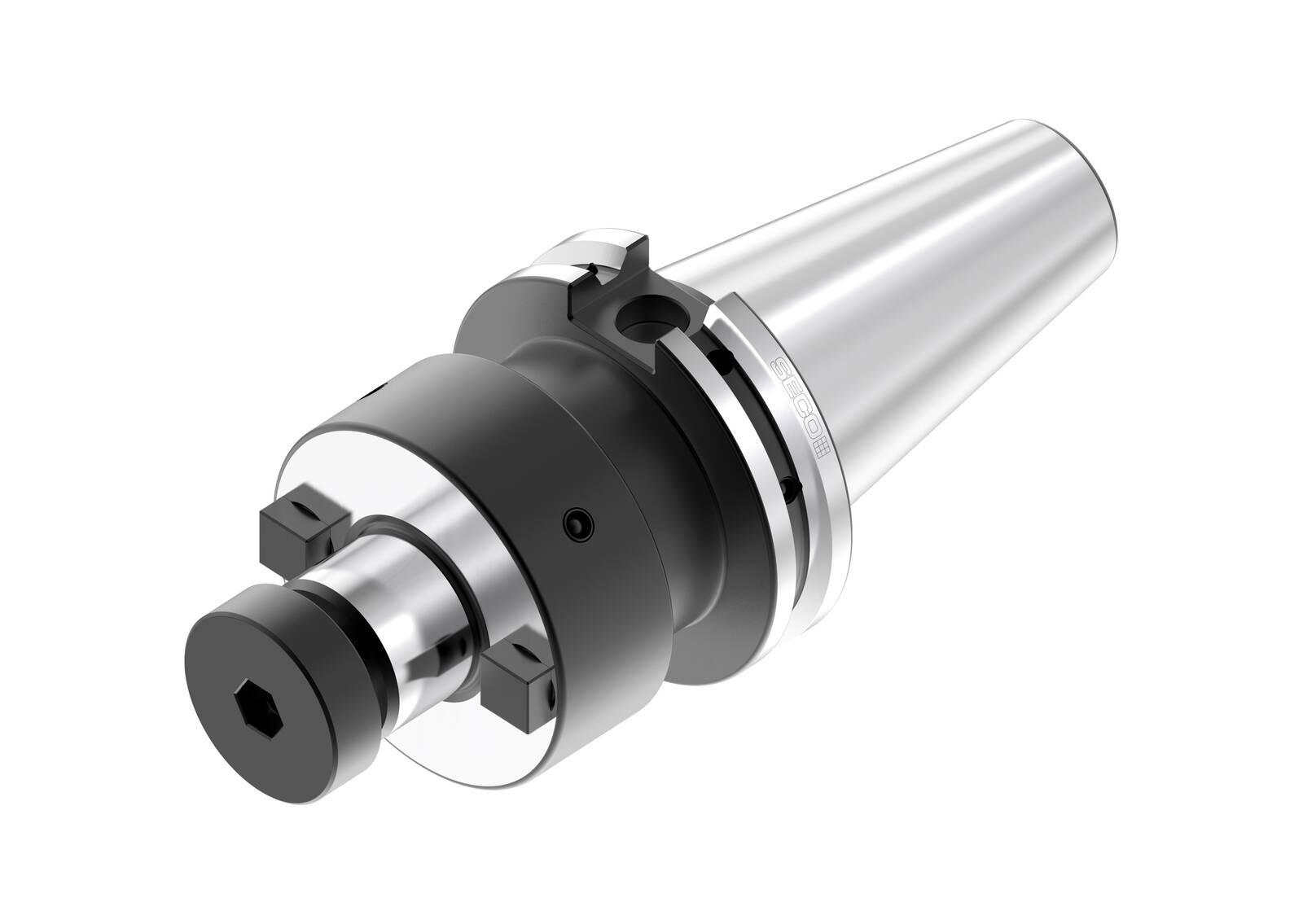

CAT40ADB .750 FACEMILL ARBOR 4.000 GL
CAT40ADB .750 FACEMILL ARBOR 4.000 GL
SEC03197130
03197130
174.18
/ EA
http://schema.org/OutOfStock
/Product/SEC03197130
- Country of Origin: SE
- Manufacturer Name: Seco Tools
- Overall Length Decimal Inch: 7.374
- Overall Length Fractional Inch: 7-3/8
- Overall Length Metric: 187.3
- Shank Connection Size: 1.751 in, 1.751in
- Shank Type: Taper Shank
- System Size Machine Side: CAT40 ADB
- Type: Milling Holder
- Nose Diameter: 1.75 in, 1.75in
- ANSI Designation: CAT40ADB-SM0.750-4.000-L1
- Body Diameter Decimal Inch: 1.75
- Body Diameter Metric: 44.45
- Body Length: 3.25in
- Connection Machine Side: CAT40 ADB
- Gage length Decimal Inch: 4
- Gage Length Fractional Inch: 4
- Has Attributes: Yes
- Has Image: Yes
- ISO Designation: CAT40ADB-SM0.750-4.000-L1
- Old Manufacturer Number: 03197130
- Shank Diameter Decimal Inch: 0.75
- Shank Diameter Fractional Inch: 3/4
- Tool Type: Other
- Item Features
- Perfectly balanced during high-speed milling, in difficult materials the low runout achieves identical depth of cut for all inserts
