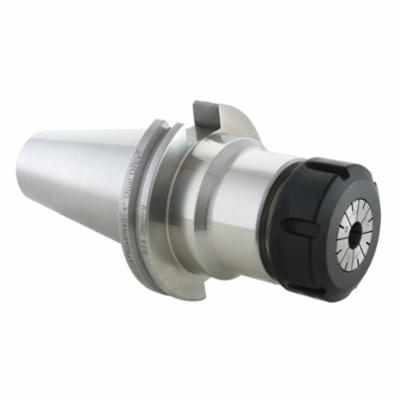

SCAT50 ER16 x 4"GL DUALDRIVE COLLET CHUCK
SCAT50 ER16 x 4"GL DUALDRIVE COLLET CHUCK
TEC47.122.16.400
47.122.16.400
302.32
/ EA
http://schema.org/OutOfStock
/Product/TEC47-122-16-400
- Chuck Size: ER16
- Collet Nut Diameter: 1.26in
- Collet System: ER16
- Head Length/Projection: 4in
- Nose Diameter: 1.102in
- Overall Length Decimal Inch: 8.01
- Overall Length Metric: 203.454
- Shank Type: Tapered
- Taper Size: CAT50
- Through Coolant (Yes/No): Yes
- Has Attributes: Yes
- Has Image: Yes
- Overall Length Fractional Inch: 8-1/64
- Type: Dual Drive Single End
- Application
- Item Features
For dual contact spindles
- Dual drive holders are compatible with dual-contact spindle designs and standard spindles
- Dual drive offers improved rigidity for reduced vibration and improved T.I.R
- Dual drive collet chucks are balanced to 25000 rpm at G2.5 tolerance
- Each holder is Techniks certified for balance and accuracy and comes with its individual lab report
- Dual drive holders are coolant capable through either the spindle or the flange (DIN B)
- The design offers better rigidity and reduced vibration for improved performance at high metal removal rates and when machining at extended lengths
