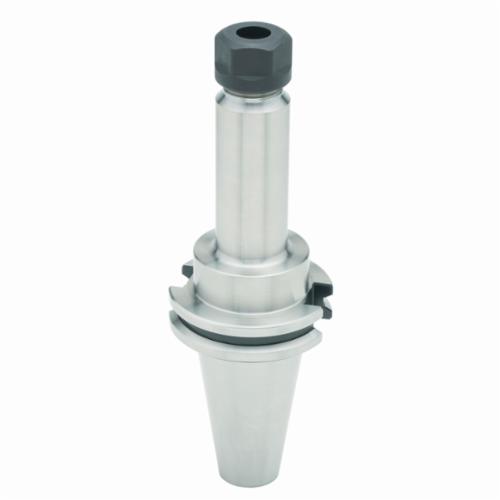

CAT40 ER16 COLLET CHUCK 5IN GL

CAT40 ER16 COLLET CHUCK 5IN GL

PARLC40-16ERF500 C40-16ERF500
210.54 / EA
http://schema.org/OutOfStock
  • ANSI Code: C40-16ER500
  • Chuck Size: ER16
  • Collet Nut Diameter: 1.1in
  • Collet System: ER16
  • Head Length/Projection: 5in
  • Nose Diameter: 1.1in
  • Overall Length Decimal Inch: 7.69
  • Overall Length Metric: 195.326
  • Shank Type: Tapered
  • Taper Size: CAT40
  • Through Coolant (Yes/No): Yes
  • Has Attributes: Yes
  • Has Image: Yes
ER collet chucks are an ideal solution for most drilling and lighter higher speed milling applications producing operational speeds as high as 25000 rpm. The versatile design of the ER collet chuck provides a wide range of machining options, from production to high precision machining. Simply select the right collet and nut combination from our range of performance choices to achieve the best toolholder for your application.
QTY
  • Application
  • Includes
  • Item Features
For CNC machines
16ERHN Flush Collet Nut
  • Collet seat taper T.I.R.
  • Accepts DIN 6499 collets
  • Balanced to G2.5
  • Constructed of alloy steel for long, durable service life
  • Hardened to Rc 52-56 to avoid damaging collet chuck treads
