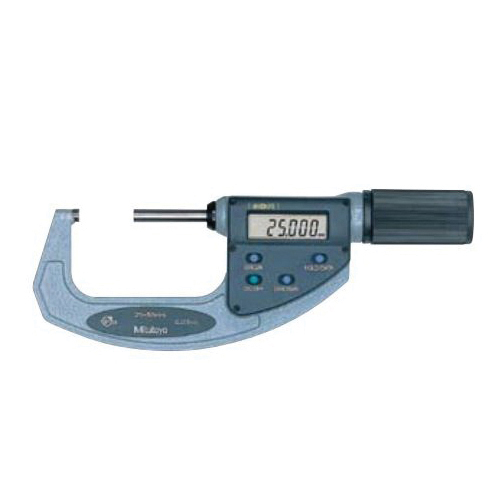

MIC, QUICK, DIGI, 25-55MM
MIC, QUICK, DIGI, 25-55MM
MTI293-667-22
293-667-22
671.24
/ EA
http://schema.org/OutOfStock
/Product/MTI293-667-22
- Country of Origin: JP
- Display Type: LCD
- Manufacturer Name: Mitutoyo America Corporation
- Power Source: SR44 Battery
- Resolution: 0.001 mm
- Spindle Diameter: 6.35 mm
- Spindle Type: Non-Rotating
- Thimble Type: Ratchet Friction
- Series: 293
- Measuring Range: 25 to 55 mm
- Accuracy: +/-2 um
- Has Attributes: Yes
- Has Image: Yes
The Quickmike provides a speedy spindle feed of 10 mm /0.4 in per thimble rotation as compared to the conventional micrometer with 0.5 mm/0.025 in per rotation. Its wide 30 mm/1.2 in measuring range allows various workpieces with different shapes to be measured quickly.
- Item Features
- Non-rotating spindle and the new ratchet friction thimble
- Speedy spindle feed by 10 mm/rev and 0.4 in/rev for inch/metric models
- With absolute linear scale
- IP54 dust/water protection (when not connected with data output cable)
- With a standard bar to set the origin point (for models with a range over 30 mm/1.2 in)
- Supplied in fitted plastic case
