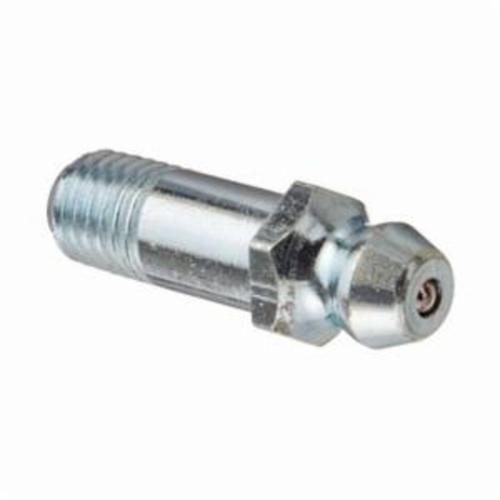

HYD FTG STR 31/32 X
HYD FTG STR 31/32 X
ALE1680-B
1680-B
0.85
/ EA
http://schema.org/OutOfStock
/Product/ALE1680-B
- Country of Origin: US
- Hex Size: 5/16 in
- Manufacturer Name: Alemite Corp
- Material: Steel
- Overall Length: 31/32 in
- Thread Size: 1/4-28 SAE-LT Male Taper
- Type: Straight Thread Forming
- Has Attributes: Yes
- Has Image: Yes
- Surface Treatment: Trivalent Zinc Plated
- Application
- Item Features
- Standards
For used on most cars and trucks and many industrial machines
- Exceeds 72 hr salt spray test
- Dirt-excluding check ball
- 10000 psi maximum
- Surface ball check
- It is recommended that SAE-LT taper threads be assembled into 1/4-28 UNF, class 3B, straight threaded holes having a modified maximum minor diameter of 0.2151 in, to ensure 75% minimum thread height
- Used where high volume of lubrication is required
- They are used for rugged automotive, agricultural and industrial machinery applications
RoHS Compliant
