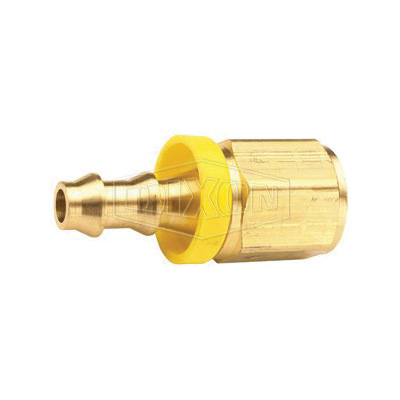

1/4" Fem NPTF x 3/8" Push-on Hose Barb
1/4" Fem NPTF x 3/8" Push-on Hose Barb
DIX2740604C
2740604C
3.02
/ EA
http://schema.org/OutOfStock
/Product/DIX2740604C
- Barb Length: 0.92 in
- Country of Origin: US
- Domestic/Import: Domestic
- Fitting/Connector Type: Adapter
- Hex Size: 5/8 in
- Length: 1-21/32 in
- Manufacturer Name: Dixon Valve & Coupling
- Material: Brass
- Nominal Size: 1/4 x 3/8 in
- Number of Barb: 2
- Pressure Rating: 350 psi
- Temperature Rating: -40 to 150 deg F
- End Type: FNPT x Hose Barb
- Has Attributes: Yes
- Has Image: Yes
- Application
- Item Features
- Standards
For pneumatic service, most fluids, low pressure hydraulics and non-potable water service
- Trim hose end with smooth square cut
- Lubricate either push-on fitting, hose or both
- Insert push-on fitting into hose until first barb is in hose
- Place end of fitting against a flat object (bench, wall, etc.) and grip the hose 1 in from end
- Push with a steady force until end of hose is covered by yellow plastic cap
SAE J476/J512/J514/J516|PROP65: This product can expose you to chemicals including lead, which is known to the State of Califonia to cause cancer and birth defects or other reproductive ham. Wash hands after handling. For more information go to www.P65Wamings.ca.gov.
