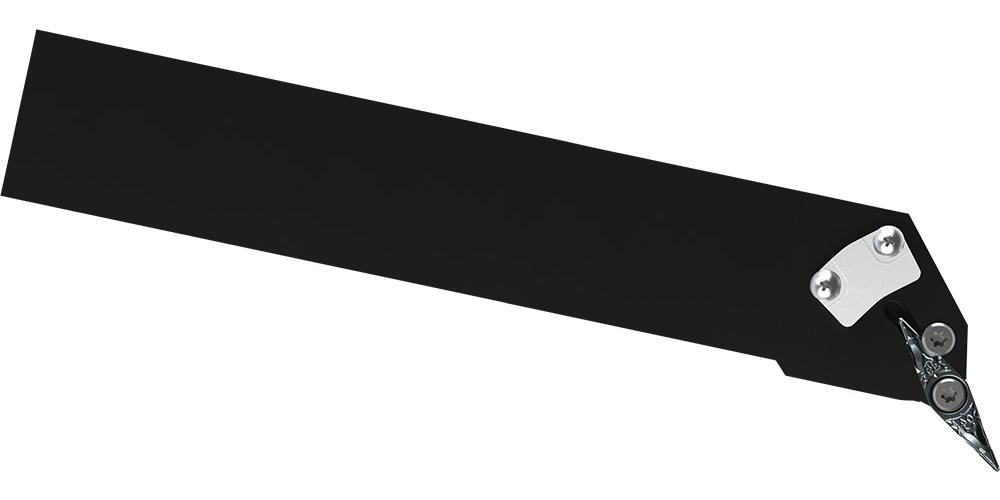

SZPBL 123CC TURNING TOOL HOLDER

SZPBL 123CC TURNING TOOL HOLDER

KYOCTHC15255 THC15255
320.69 / EA
http://schema.org/OutOfStock
SZPBL 123CC TURNING TOOL HOLDER
  • Hand Direction: Left Hand
  • Lead Angle: 30 deg
  • Material: Steel
  • Rake: Positive
  • Shank Size: 19.05 mm H x 19.05 mm W
  • Tool Holder Style: SZPBL
  • ANSI Code: SZPBL123CC
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • Insert Style: ZBMT13T3
  • ISO Code: SZPBL12-3C-C
  • Manufacturer Name: KYOCERA Precision Tools
  • Series: SDTH
QTY
Add to List
  • Application
  • Item Features
  • Standards
For External Turning, Facing, Copying, Undercutting
  • Newly Developed Self-Clamping Mechanism Achieves a Higher Rigidity
  • Supplies coolant directly to the cutting edge and provides improved chip evacuation and long tool life (Fine adjustments to the coolant direction are possible)
  • Compatible with Right-Hand or Neutral ZBMT13T3 Style Inserts
