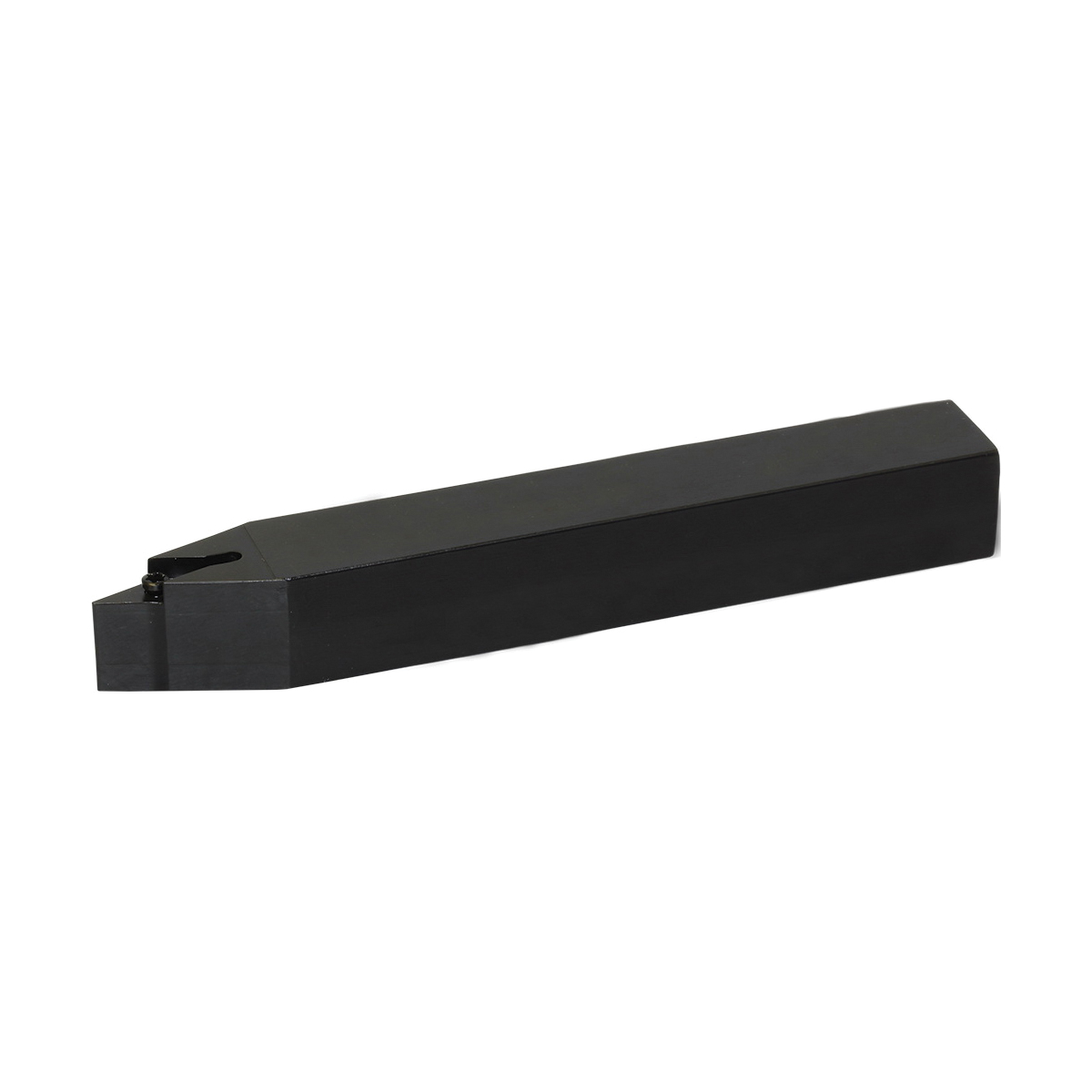

SVVCN1212JX11 TURNING TOOL HOLDER
SVVCN1212JX11 TURNING TOOL HOLDER
KYOCTHC14837
THC14837
116.32
/ EA
http://schema.org/OutOfStock
/Product/KYOCTHC14837
- Hand Direction: Neutral
- Lead Angle: 72.5°
- Material: Steel
- Overall Length Decimal Inch: 120
- Overall Length Metric: 3048
- Rake: Positive
- Shank Size: 12mm W x 12mm H
- Tool Holder Style: SVVC
- ANSI Code: SVVCN1212JX11
- Back of Bar to Cutting Edge: 6mm
- Country of Origin: US|JP|CN|KR
- Has Attributes: Yes
- Has Image: Yes
- Inscribed Circle: 6.35mm
- Insert Style: VCGT22…/VCET22…
- ISO Code: SVVCN1212JX-11
- Manufacturer Name: KYOCERA Precision Tools
- Seat Size: 3.18mm
- Series: SVVC
- Type: Metric
- Application
- Item Features
- Standards
Swiss, External Turning and Copying Applications
- Screw clamp insert holding design
- Simple mechanism with fewer parts for finishing to medium machining
- Without coolant
ECCN: EAR99
