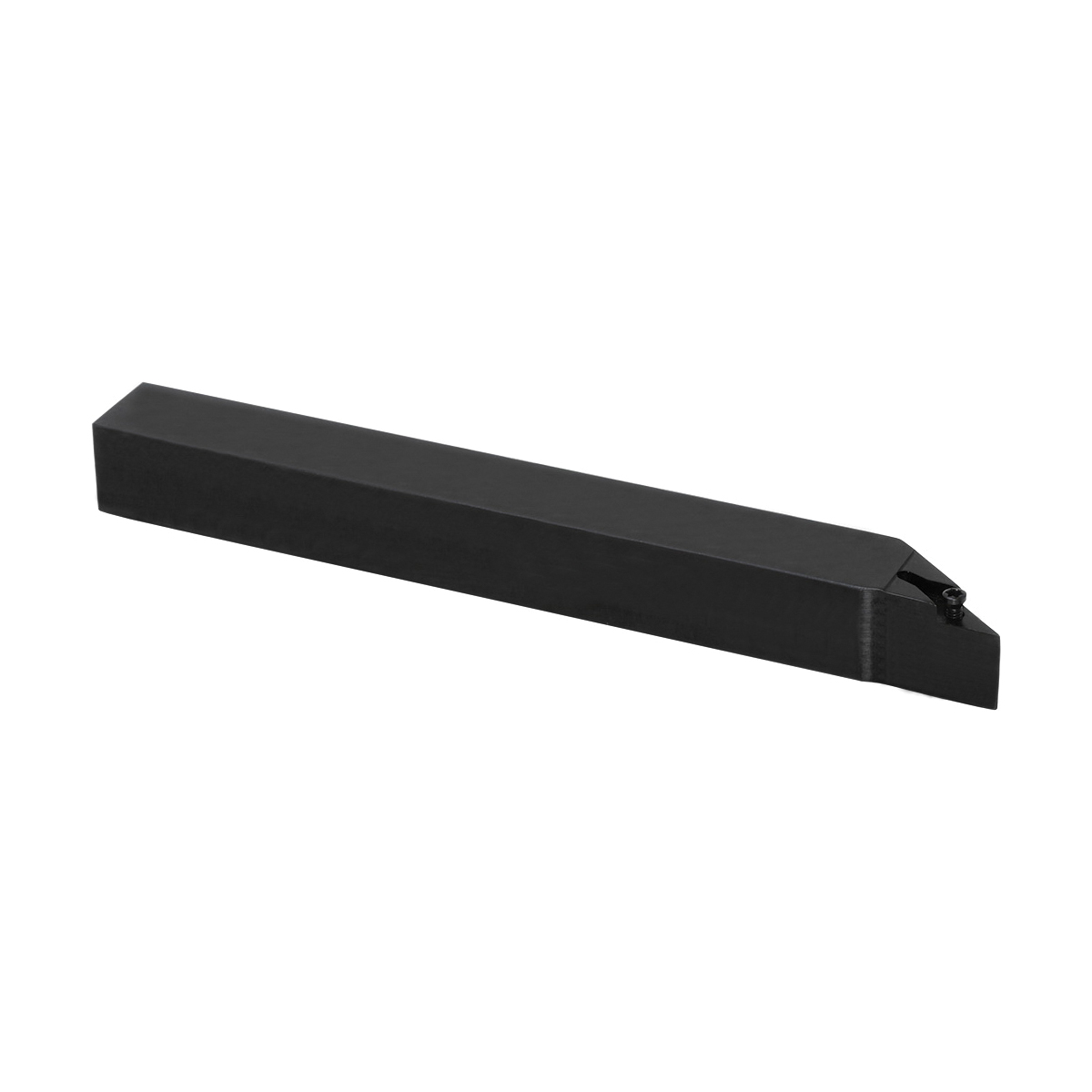

SVJCL1010JX11FF TURNING TOOL HOLDER
SVJCL1010JX11FF TURNING TOOL HOLDER
KYOCTHC14817
THC14817
113.70
/ EA
http://schema.org/OutOfStock
/Product/KYOCTHC14817
- Hand Direction: Left Hand
- Lead Angle: 93°
- Material: Steel
- Overall Length Decimal Inch: 120
- Overall Length Metric: 3048
- Rake: Positive
- Shank Size: 10mm W x 10mm H
- Tool Holder Style: SVJC
- ANSI Code: SVJCL1010JX11FF
- Back of Bar to Cutting Edge: 10mm
- Country of Origin: US|JP|CN|KR
- Has Attributes: Yes
- Has Image: Yes
- Inscribed Circle: 6.35mm
- Insert Style: VCGT22…/VCET22…
- ISO Code: SVJCL1010JX-11FF
- Manufacturer Name: KYOCERA Precision Tools
- Seat Size: 3.18mm
- Series: SVJC-FF
- Type: Metric
- Application
- Item Features
- Standards
Swiss, External Turning and Copying Applications
- Screw clamp insert holding design
- Simple mechanism with fewer parts for finishing to medium machining
- Without coolant
ECCN: EAR99
